نام محصول:
دریچه با مهر و موم
نام انگلیسی:

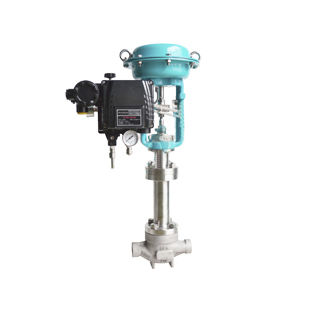

Valve with bellows seal 812B
برند:
SuZhou KoSa Environmental Protection CO.,LTD
مشخصات:
812B bellows sealing control valve, the use of top-oriented structure, high strength, heavy load, S-type flow channel, the pressure drop loss, flow coefficient, adjustable wide range of high precision flow characteristics. Valve cover at the use of bellows and filler double seal, fundamentally put an end to the possibility of media leakage. The type of control valve for toxic or precious media flow pressure control.
Design features
Top guide structure
The flow coefficient is large, and the range of adjustment is wide
Double seal packing, no leakage
Suitable for use with toxic media
توضیحات:
Type
diaphragm
Operation
lever control, electric, pneumatic
Function
for control, regulating
Media
for chemicals, for gas, for inert gases
Body$
flange, with extended stem, IP54, with integrated safety
Applications
industrial
Material$
carbon steel
Other characteristics
with bellows seal
DN
Min.: 15 mm(0.591 in)Max.: 400 mm(15.748 in)
Pressure
Min.: 16 bar(232.1 psi)Max.: 640 bar(9,282.4 psi)
Temperature
Min.: -196 °C(-321 °F)Max.: 550 °C(1,022 °F)
