نام محصول:
دریچه با مهر و موم
نام انگلیسی:

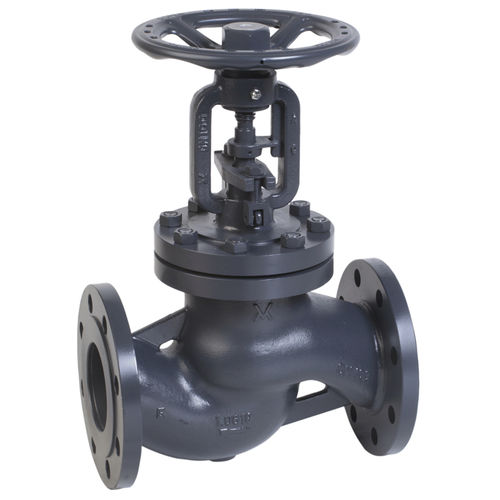

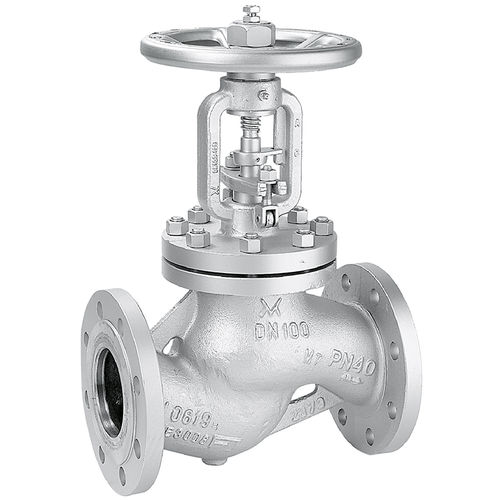

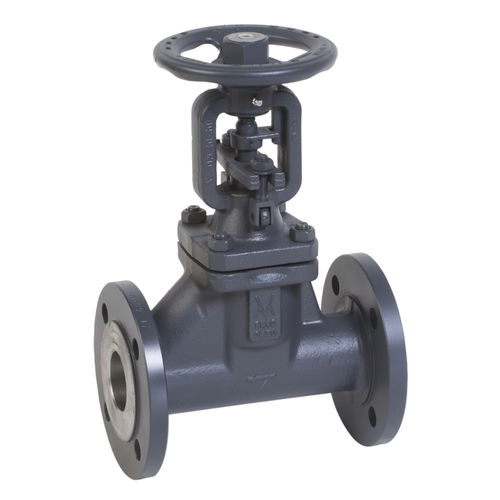

Valve with bellows seal 346 series
برند:
Mival
مشخصات:

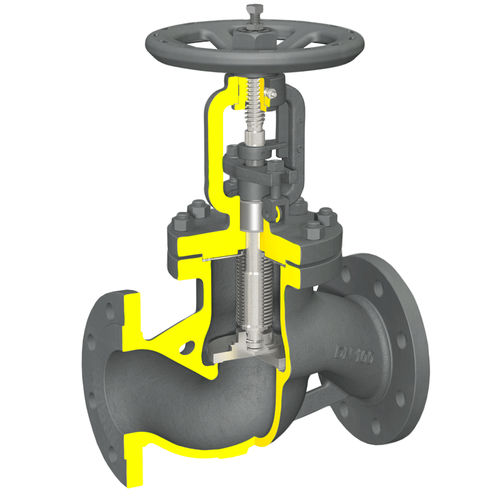

Flow valve with external screw, maintenance-free, series PN 40, built with body and stand in carbon steel GP 240 GH + N, stainless steel interior, bellows seal, complete with position indicator, locking screws, grease nipple , riser limiting screw (on request), manual handwheel control, flanged connections according to EN1092-1 PN 40 with prominence.
Streamlined flow valves, Streamlined flow valves bellows type, Streamlined flow valves bellows type on carbon steel PN 40 – ANSI 150 (1.0619)
توضیحات:
Type
globe
Operation
with handwheel
Function
flow control
Media
for hot water, for oil, for air, for steam
Body$
flange
Applications
for heating systems, for boiler
Material$
stainless steel, carbon steel
Other characteristics
standard, ANSI, locking, with bellows seal, grease
DN
Min.: 15 mm(0.591 in)Max.: 250 mm(9.843 in)
Pressure
Min.: 23.8 bar(345.2 psi)Max.: 40 bar(580.2 psi)
Temperature
Min.: -10 °C(14 °F)Max.: 400 °C(752 °F)
Flow rate
Min.: 4.8 m³/h(169.51 ft³/h)Max.: 1,086 m³/h(38,351.73 ft³/h)
