نام محصول:
دریچه با مهر و موم
نام انگلیسی:
Valve with bellows seal 346 series
برند:
Mival
مشخصات:

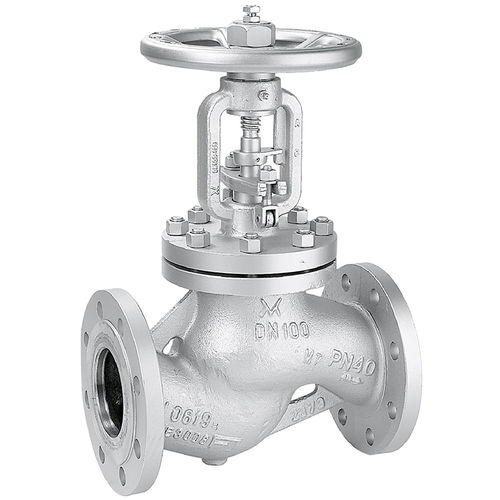

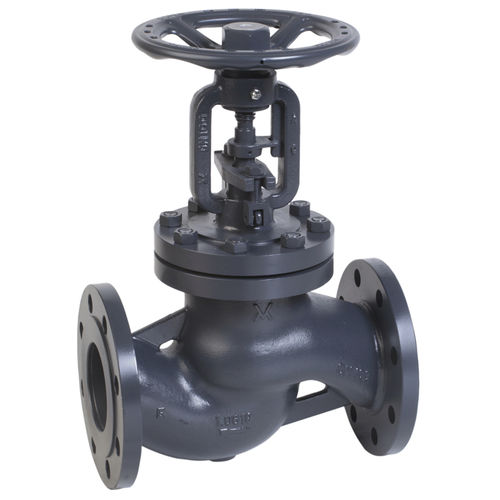

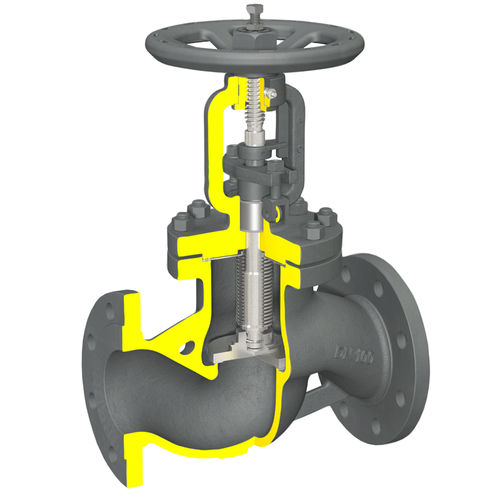

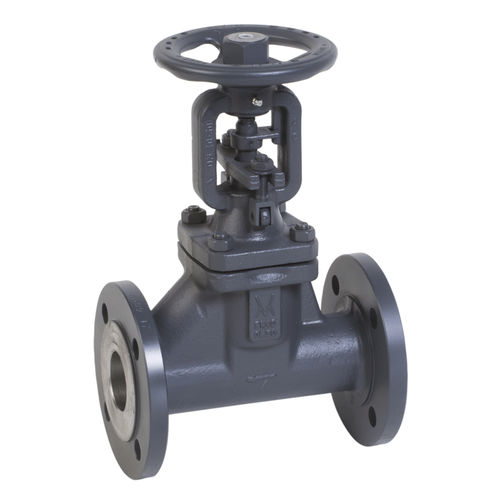

Flow valve with external screw, maintenance-free, series PN 40, built with body and stand in carbon steel GP 240 GH + N, stainless steel interior, bellows seal, complete with position indicator, locking screws, grease nipple , riser limiting screw (on request), manual handwheel control, flanged connections according to EN1092-1 PN 40 with prominence.
Streamlined flow valves, Streamlined flow valves bellows type, Streamlined flow valves bellows type on carbon steel PN 40 – ANSI 150 (1.0619)
توضیحات:
Type
globe
Operation
with handwheel
Function
flow control
Media
for hot water, for oil, for air, for steam
Body
flange, stainless steel, carbon steel
Applications
for heating systems, for boiler
Other characteristics
standard, ANSI, locking, with bellows seal, grease
DN
Max.: 250 mm(9.843 in)Min.: 15 mm(0.591 in)
Pressure
Max.: 40 bar(580.2 psi)Min.: 23.8 bar(345.2 psi)
Temperature
Max.: 400 °C(752 °F)Min.: -10 °C(14 °F)
Flow rate
Max.: 1,086 m³/h(38,351.73 ft³/h)Min.: 4.8 m³/h(169.51 ft³/h)
