نام محصول:
دریچه با دستگیره
نام انگلیسی:
Valve with handwheel T330
برند:
Taloar
مشخصات:

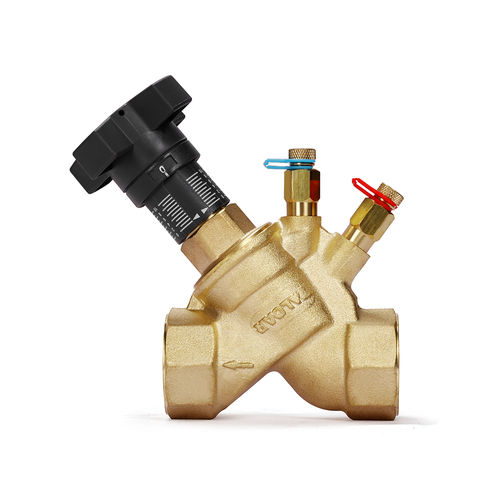

Taloar small-sized brass balance valve adopts low-resistance Y-shaped structure, and its orifice plug is of V-shaped design for better linear regulation. Flow measuring fittings on both ends feature good self-sealing performance and easy adjustment. The highly precise valve disc and favorable sealing performance ensure measurement precision and persistence.
Product Features
High measurement precision.
ON/OFF and regulating functions.
Regulation memory function.
Precise digital setting and display.
Plug-in measuring point, allowing quick connection.
Material Specifications
50 mm long stainless steel extension pipe fittings at measuring points are allowed to stretch out of thermal insulation materials of the system.
توضیحات:
Operation
with handwheel
Function
regulating
Media
for water
Body
threaded, angle seat, compact, brass, alloy, copper
Applications
HVAC
Associated function
balancing
Other characteristics
full-flow, high-performance
DN
Min.: 0.5 inMax.: 2 in
Pressure
Min.: 25 psiMax.: 350 psi
Temperature
Min.: -10 °C(14 °F)Max.: 120 °C(248 °F)
