نام محصول:

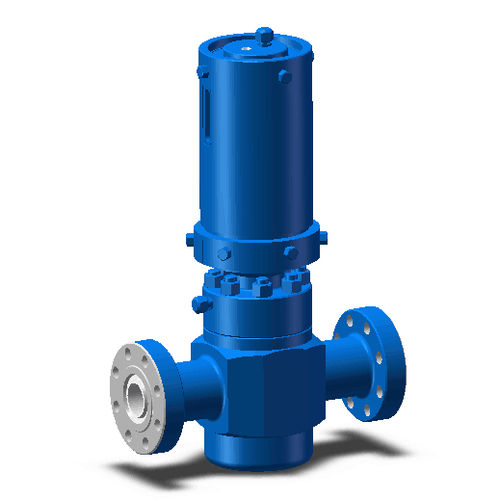

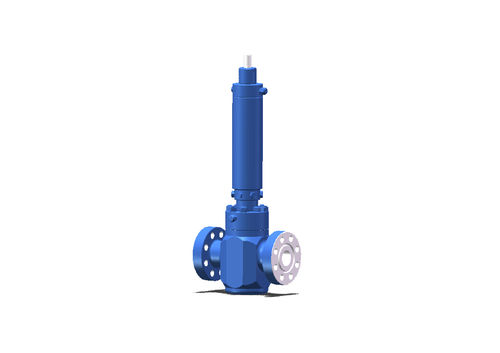

دریچه ایمنی گاز
نام انگلیسی:
Gas safety valve
برند:
Jianhu Jielin Petrochemical Machinery Co., Ltd.
مشخصات:
Hydraulic safety valves are made according to API 6A. When oil and gas leaking or firing, used for security protect on well site, the control system includes low pressure control valves, one will be set at a high pressure exceeds either the high pressure setting or drops below the low pressure setting, the valve with automatically close.
Features:
Working pressure: 2000PSI~20000PSI
Nominal Bore: 1.13/16″~7.1/16″(46mm~180mm)
Working Medium: Oil, natural gas, mud,gas, etc.
Working Temperature: -46º C° C~121° C(Class LU)
Material Class: AA-HH
Specification Level: PSL1-4
Performance Class: PR1
توضیحات:
Fluid
gas
Other characteristics
oil, hydraulic
Controlled pressure
Min.: 2,000 psiMax.: 20,000 psi
DN
Min.: 46 mm(1.811 in)Max.: 180 mm(7.087 in)
