نام محصول:
دریچه ایمنی بخار
نام انگلیسی:

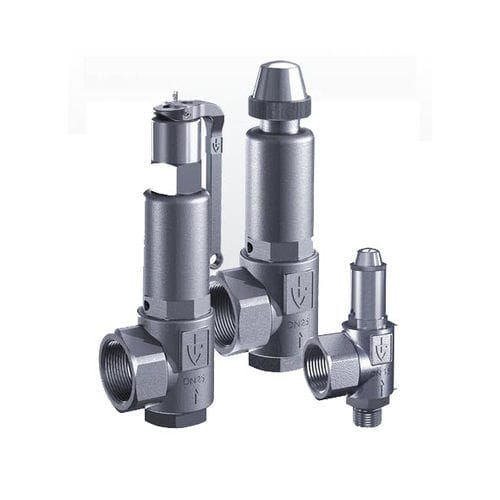

Steam safety valve 451 series
برند:
Goetze KG
مشخصات:
The benefits and applications of this series made of high-alloyed stainless steel begin, where versions made of gunmetal are at their limits. The flexibility of the various versions offer the optimal configuration for every application.
In addition to the basic version the numerous sealing possibilities and materials, back-pressure compensating metal bellows and / or a gastight cap offer the necessary optional extras required to fulfill the highest safety requirements.
For the protection of:
– pressure tanks and -systems for neutral / non-neutral vapours, gases and liquids
– steam boilers and steam plants
– bulk transport vehicles for liquid, granular and dusty goods.1
Please observe plant-specific regulations and use of appropriate valve version and sealing material.
– chemical plants, biogas plants
– process equipment construction and medical technology (sterilizers, autoclaves)
secondary areas in the food-, beverage-, pharmaceutical- and cosmetics- industries
–
Safety valves are set and sealed at the factory.
توضیحات:
Fluid
for steam, for gas, for compressed air
Applications
for tanks
Other characteristics
threaded
Controlled pressure
Min.: 0.5 bar(7.3 psi)Max.: 70 bar(1,015.3 psi)
DN
Min.: 0.5 inMax.: 2 in
