نام محصول:
دریچه اگزوز سریع انتشار
نام انگلیسی:

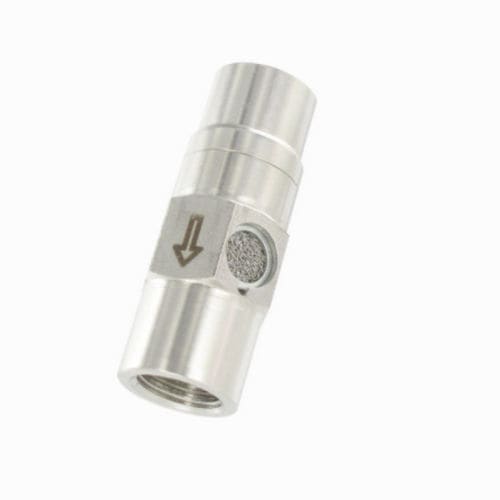

Quick-release exhaust valve 1675
برند:
SENGA
مشخصات:
Stainless steel quick exaust valve series
Material and components:
– body in stainless steel AISI 316 L
– o-ring in Viton (FPM) ou PU
– other parts in stainless steel AISI 316
Applications : chemical and food industries
– working pressure : 2 – 10 BAR or 1 – 40 BAR
– working temperature : -10°C / +150°C or -10°C / +120°C
– air flow at 6 BAR : from 800 to 3500 Nl/min
توضیحات:
Type
diaphragm
Operation
pneumatic
Function
purge
Media
for liquid food products and beverages, for chemical products, for compressed air
Body$
screw-in
Applications
for industrial applications, for the chemical industry, for the food industry
Material$
stainless steel
Fluid specification
for aggressive media
Associated function
quick-release exhaust
Other characteristics
high-pressure, high-performance, corrosion-resistant, high-temperature
Pressure
Min.: 1 bar(14.5 psi)Max.: 40 bar(580.2 psi)
Temperature
Min.: -10 °C(14 °F)Max.: 150 °C(302 °F)
Flow rate
Min.: 800 l/min(211.34 us gal/min)Max.: 3,500 l/min(924.6 us gal/min)
