نام محصول:
دریچه اگزوز سریع انتشار
نام انگلیسی:

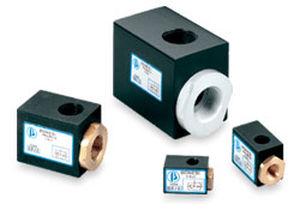

Quick-release exhaust valve SR series
برند:
Bonesi Pneumatik s.r.l.
مشخصات:
Quick exhaust valves SR are used to exhaust the pressure of the chambers of a pneumatic cylinder directly into the atmosphere, growing the speed of the cylinder to the maximum. They have the body and the components in anodized aluminium, NBR seals and they are available with versions from 1/8” to 1”.
CONSTRUCTIVE FEATURES
Fluid :Filtered air
Operating pressure :1 ÷ 10 bar
Temperature range: -10°C ÷ +70°C
Materials :Body and components in anodized aluminium, seals NBR
RANGE
Port ——– Model
1/8″ ——– SR-8
1/4″ ——– SR-4
1/2″ ——– SR-2
1″ ———– SR-1
توضیحات:
Type
ball
Function
flow control
Media
for compressed air
Applications
for pneumatic cylinders
Material$
anodized aluminum
Associated function
quick-release exhaust
Other characteristics
with seal
DN
0.125 in, 0.25 in, 0.5 in, 1 in
Pressure
Min.: 1 bar(14.5 psi)Max.: 10 bar(145 psi)
Temperature
Min.: -10 °C(14 °F)Max.: 70 °C(158 °F)
Flow rate
Min.: 620 l/min(163.79 us gal/min)Max.: 19,000 l/min(5,019.27 us gal/min)
