نام محصول:
دریچه الکترونوئید متناسب
نام انگلیسی:

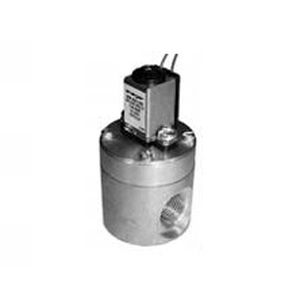

Proportional solenoid valve MI 230-001
برند:
Staiger GmbH & Co. KG
مشخصات:
The valve of the type MI 230-001 is a 2-way solenoid valve, servo actuated, bistable. By using the pulse magnet principle, energy is only consumed during the switching process. By using this type of valve, extremely energy-saving systems can be implemented. Furthermore, the heating of this component, the medium or the environment, in comparison to a valve with a permanently switched coil, is almost completely absent.
Important specifications
Application – Neutral liquids, gases and vapors
Way function – 2-way function NC
Principle – impulse solenoid actuated (bi-stable valve)
Possible seals – NBR EPDM FPM
Connection – G1/4
Kv-value – ≥ 0,85 m³/h
Nominal size – 8,00 mm
Weight – 0,45 kg
توضیحات:
Control
pilot-operated
Ports/positions
2-way
Function
NC
Medium
for gas
Body
brass, IP54
Other characteristics
proportional, switching, bistable
Voltage
6 V, 9 V, 12 V, 24 V
Temperature
50 °C(122 °F)
Pressure
Max.: 8 bar(116 psi)Min.: 0.5 bar(7.3 psi)
دیدگاهها
هیچ دیدگاهی برای این محصول نوشته نشده است.
