نام محصول:
دریچه الکترونوئید متناسب
نام انگلیسی:

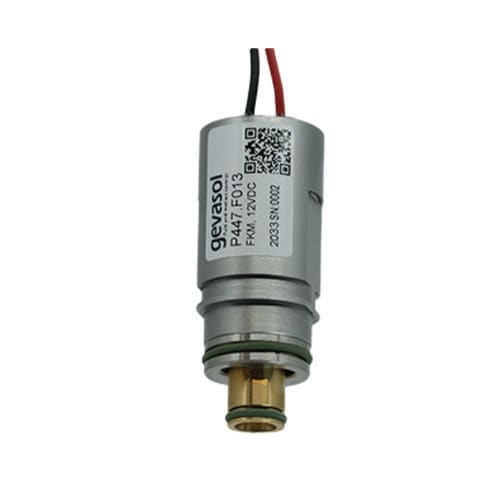

Proportional solenoid valve P447 BP
برند:
GEVASOL
مشخصات:
Designed primarily for flow and pressure regulations.
Applications: pilot pressure regulation, air motor, Venturi.
Instrumentation
Gas analyzer
Medical
Respiratory
Specifications
Pitch size [mm]
16.5
Media
Non-corrosive gas
Connection
Cartridge, sub-base mount
Flow factor kv [l/min]
3.3
O2 clean option
Yes
Type of acting
Pressure compensated
Material in contact with media – Base
DIN 1.4305, 1.4105, Brass, PEEK
Material in contact with media – Seals
NBR, FPM
Temperature range – Ambient [°C]
5 to +50
Internal leakage [ml/min]
< 0.6 (*)
External leakage [ml/min]
100 million
توضیحات:
Control
direct-operated
Ports/positions
2-way
Function
NC
Medium
for gas, for food
Body
PEEK, IP51, brass
Other characteristics
proportional, cartridge, custom, high-resolution, pressure-compensated, balancing
DN
4.6 mm(0.181 in)
Voltage
Min.: 5 VMax.: 24 V
Temperature
Min.: 5 °C(41 °F)Max.: 50 °C(122 °F)
Pressure
Min.: 0 bar(0 psi)Max.: 7 bar(101.5 psi)
