نام محصول:
دریچه الکترونوئید متناسب
نام انگلیسی:

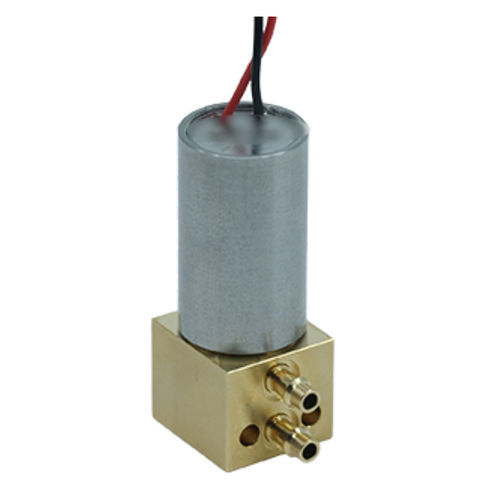

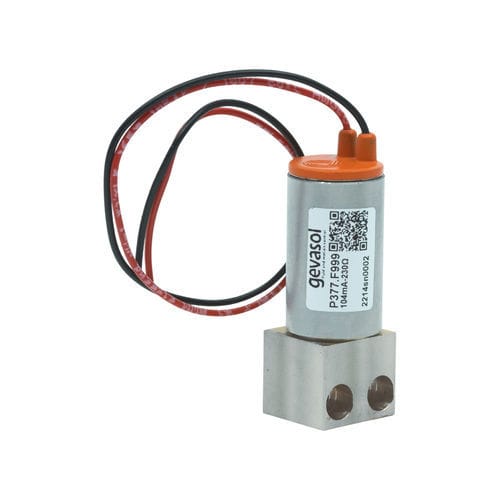

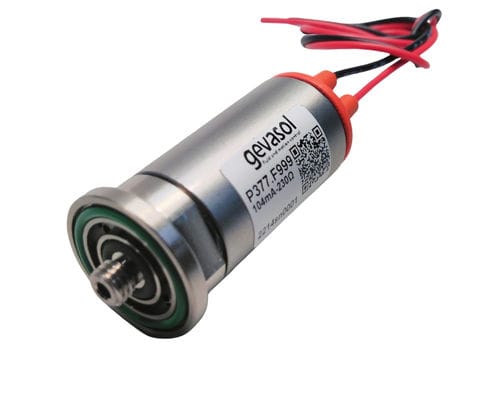

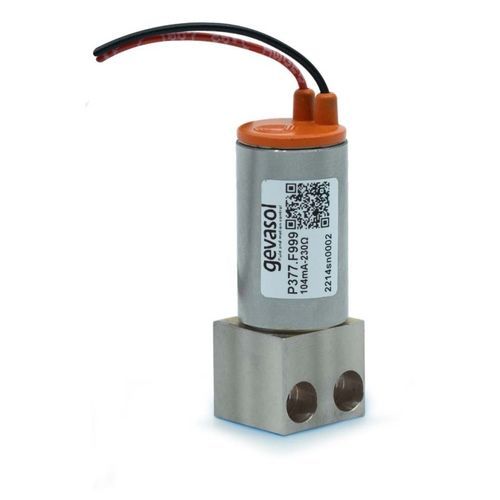

Proportional solenoid valve P377
برند:
GEVASOL
مشخصات:
Suited for precision dosing in instrumentation, gas analyzers and medical applications.
Instrumentation
Bio-tech Gas analyzer Microfluidics
Medical
Respiratory
Industrial
Automation
Specifications
Pitch size [mm]
17
Media
non-corrosive gas and liquid
Connection
M5, sub-base mount, barbed
Pressure [Bar]
-1 to 12
Flow factor kv [l/min]
0.01 to 1.0
O2 clean option
yes
Material in contact with media – Base
DIN 1.4305, 1.4105, Brass
Material in contact with media – Seals
NBR, EPDM or FPM
Operating Pressure Range [Bar]
-1 to 12 rel. (depending on the orifice size)
Temperature range – Ambient [°C]
0° to +50°
Internal leakage [ml/min]
ml/min < 0.6 (*)
External leakage [ml/min]
ml/min < 0.6 (*)
Duty cycle
100% ED
توضیحات:
Control
direct-operated
Ports/positions
2-way
Function
NC
Medium
for gas, for vacuum
Body
barbed, IP51
Other characteristics
proportional, DIN, analytical
DN
Max.: 2 mm(0.079 in)Min.: 0.05 mm(0.002 in)
Voltage
Max.: 24 VMin.: 5 V
Temperature
Max.: 50 °C(122 °F)Min.: 0 °C(32 °F)
Pressure
Max.: 12 bar(174 psi)Min.: -1 bar(-14.5 psi)
