نام محصول:
دریچه اسپری
نام انگلیسی:
Spray valve lubriLine
برند:
DOPAG – Metering, Mixing and Dispensing Technology
مشخصات:
Clean and accurate spray application of grease and oil

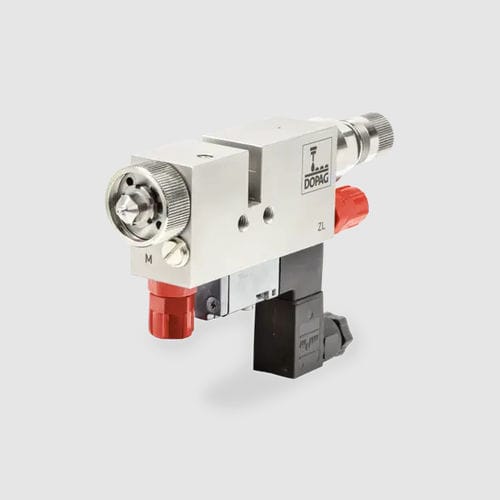

The spray valve is a special kind of valve designed for full-surface application of greases and oils. It is suitable for both intermittent and continuous material applications. A unique feature of this valve is the integration of a membrane, which is used for the adjustment of the air blow duration after each material shot – this serves the cleaning of the nozzle. Short air ways in the body of the valve and a flange-mounted 5/2 way solenoid valve allow a very fast and accurate intermittent operation. A wide range of available extensions and attachments open up the possibility of spray application in hard-to-access areas, while various aircaps allow the customisation of the spray coating pattern.
Features
• Spray application
• With 24 V solenoid valve (SPV-01) / Compact construction without solenoid valve (SPV-02)
توضیحات:
Type
with membrane
Operation
electric
Function
adjustment, metering
Media
for oil
Body$
flange-mounted, compact
Applications
for precision applications
Associated function
spray
Other characteristics
compact, automatic
DN
Min.: 0.2 mm(0.008 in)Max.: 1.5 mm(0.059 in)
Pressure
35 bar(507.6 psi)
