نام محصول:
دریچه آهن
نام انگلیسی:

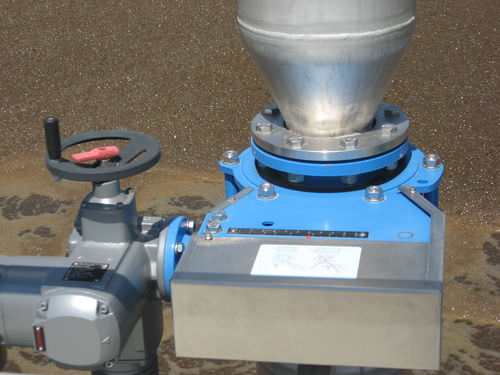

Iris® valve Iris®
برند:
Emile Egger & Cie SA
مشخصات:
Energy saving valve for the precise and economical control at low loss of pressure of liquids and gases that can be either clean or contain particles.
Applications

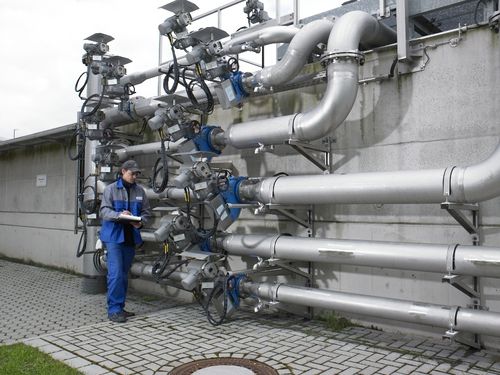

– Air for aeration in wastewater treatment plant
– Gases
– Municipal and industrial wastewater
– Slurries and viscous materials
– Paper pulp and fibrous suspensions
– Pellets with a particle size over 0,5 mm
– Sugar suspensions
– Drinking water
Features
– Highly precise control of the flow rate through concentric Iris® diaphragms (similar to a camera diaphragm).
– Energy-saving and low-noise control valve due to its free centric passage.
– Maintenance free
Advantages
– Energy-saving flow control
– No hysteresis
– Robust construction, suitable for frequent start-stop
– Low pressure losses due to larger open channel
– High flow capacity Cv (Kv)
– Turbulence-free across the entire range of flow regulation
توضیحات:
Type
Iris®
Operation
manual, pneumatic, electric
Function
flow control, adjustment, changeover, flow-control, pressurisation, mass flow control, air-fuel ratio control, high-capacity control
Media
for water, for oil, for liquid food products and beverages, for chemical products, for sludge
Body$
flange, concentric
Applications
industrial, for industrial applications, for the chemical industry, for the food industry, process, for liquids, for pump, for granulates, for powders, for slurries
Material$
stainless steel
Fluid specification
for corrosive fluids, for paper stock, for medium-viscosity products
Associated function
transfer
Other characteristics
ISO, ANSI, low-noise, quick-closing, for explosive atmospheres, energy-saving, ATEX, for compressed gas, for exhaust gas
DN
Max.: 400 mm(15.748 in)Min.: 25 mm(0.984 in)
Pressure
Max.: 10 bar(145 psi)Min.: 0 bar(0 psi)
Temperature
220 °C(428 °F)
