نام محصول:
دریچه آسپتیک
نام انگلیسی:

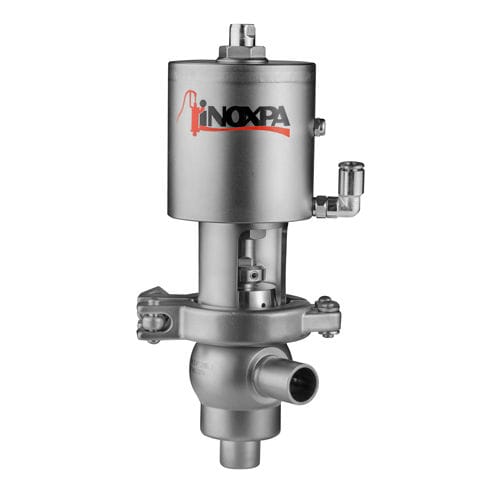

Aseptic valve INNOVA MINI N ASEPTIC
برند:
INOXPA
مشخصات:
The aseptic INNOVA Mini N valve is a shut-off single seat valve suitable for any sterile use that the pharmaceutical, chemical, food or beverage industries could be required.
The asepsis in the inner of the valve obtains creating a hermetic barrier between the atmosphere and the fluid by
means of a Teflon diaphragm situated on the shaft valve. This diaphragm ensures total isolation of all components
that are in contact with the product.
Gasket with specfic profile guarantees reliability under adverse working conditions.
Single-acting pneumatic actuator.
Normally closed valve (NC) in its standard version.
The valve can be changes to normally open (NO) by simply reversing the position of the pneumatic actuator.
Easy disassembly of internal parts by loosening a clamp fastener.
Open lantern allows visual inspection of shaft sealing.
Parts in contact with the product 1.4404 (AISI 316L)
Other steel parts 1.4301 (AISI 304)
Seals in contact with the product EPDM
Surface finish
Internal Brigh polish Ra ≤ 0,8 μm
External Matt
Double-acting pneumatic actuator.
Seals: FPM and HNBR.
Other connections: male and clamp.
External position sensors.
Surface finish Ra ≤ 0,5 μm.
توضیحات:
Type
diaphragm
Operation
pneumatically-operated
Function
shut-off
Media
for water
Body$
seat
Applications
for the chemical industry, for the food industry, beverage, for the pharmaceutical industry
Other characteristics
normally closed, single-acting, normally open, aseptic, total isolation
DN
10 mm, 15 mm, 20 mm(0.394 in, 0.591 in, 0.787 in)
Pressure
Min.: 6 bar(87 psi)Max.: 10 bar(145 psi)
Temperature
Min.: -10 °C(14 °F)Max.: 140 °C(284 °F)
