نام محصول:
داکت فن WK
برند:
KS Ventilatoren
نام انگلیسی:
Duct fan WK
مشخصات:
Installation
duct
Configuration
axial
Function
ventilation
Supply voltage
400 VAC
Drive mechanism
with asynchronous motor
Material
aluminum, cast aluminum, steel
Other characteristics
modular
Air flow
Min.: 2,190 m³/h (77,339.12 ft³/h)
Max.: 160,000 m³/h (5,650,346.68 ft³/h)
Diameter
Min.: 315 mm (12.402 in)
Max.: 2,000 mm (78.74 in)
توضیحات:

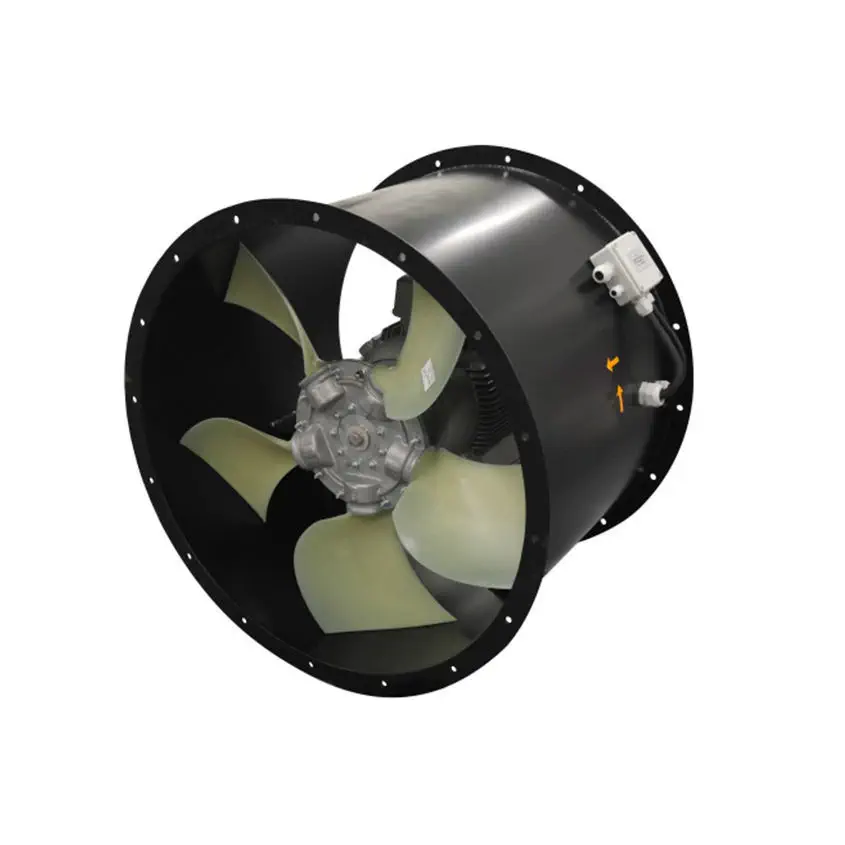

Standard axial fans are designed for installation in a duct in any position.
Motor powers: from 0.15kW to 45kW.
Operating temperature: from -20 to +40°C.
Airflow direction: A (motor – impeller) or B (impeller – motor).

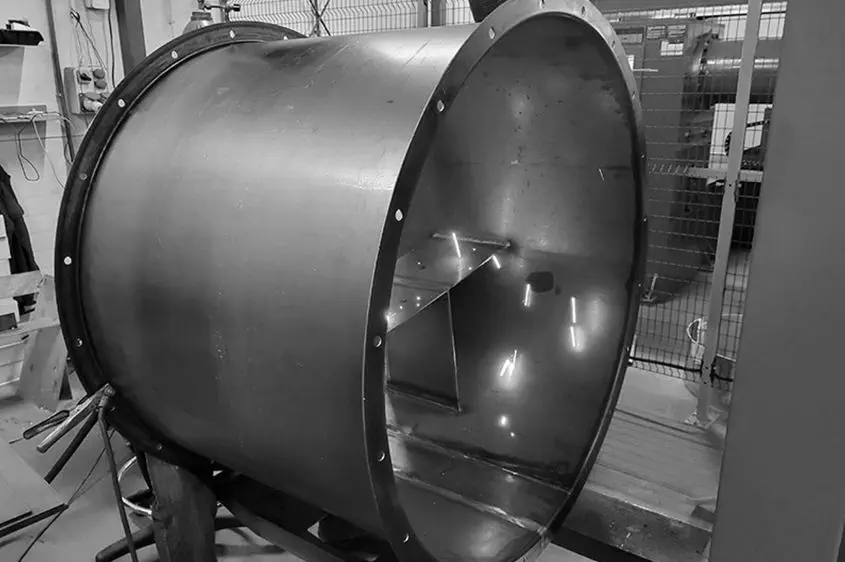

DUCT FANS MADE OF HIGH QUALITY STEEL SHEET
The casing of the duct fan is made of high quality sheet steel and powder coated black according to the applicable standards. The fan has a modular impeller consisting of an aluminum hub and PAG (glass fiber reinforced polyamide) blades.
Motor – asynchronous, three-phase 400V/50Hz, IP 55, insulation class F, cast aluminum. Three-phase motors are suitable for control by a frequency converter (inverter).
