نام محصول:
داکت فن CADET® VAC & VEP
برند:
COPPUS
نام انگلیسی:
Duct fan CADET® VAC & VEP
مشخصات:
Installation
duct
Configuration
axial
Function
cooling, extraction, drying, ventilation
Supply voltage
220VAC, 115VAC, 110VAC, AC
Material
plastic
Other characteristics
anti-corrosion, high-performance, for chemical applications, low-noise, energy-efficient, industrial, portable, rugged, long-life, low-vibration, commercial, compact, reversible, single-inlet, explosion-proof, motor, for small rooms, plug
Air flow
Min.: 1,206 m³/h (42,589.49 ft³/h)
Max.: 1,465 m³/h (51,735.99 ft³/h)
Noise level
88 dB
توضیحات:

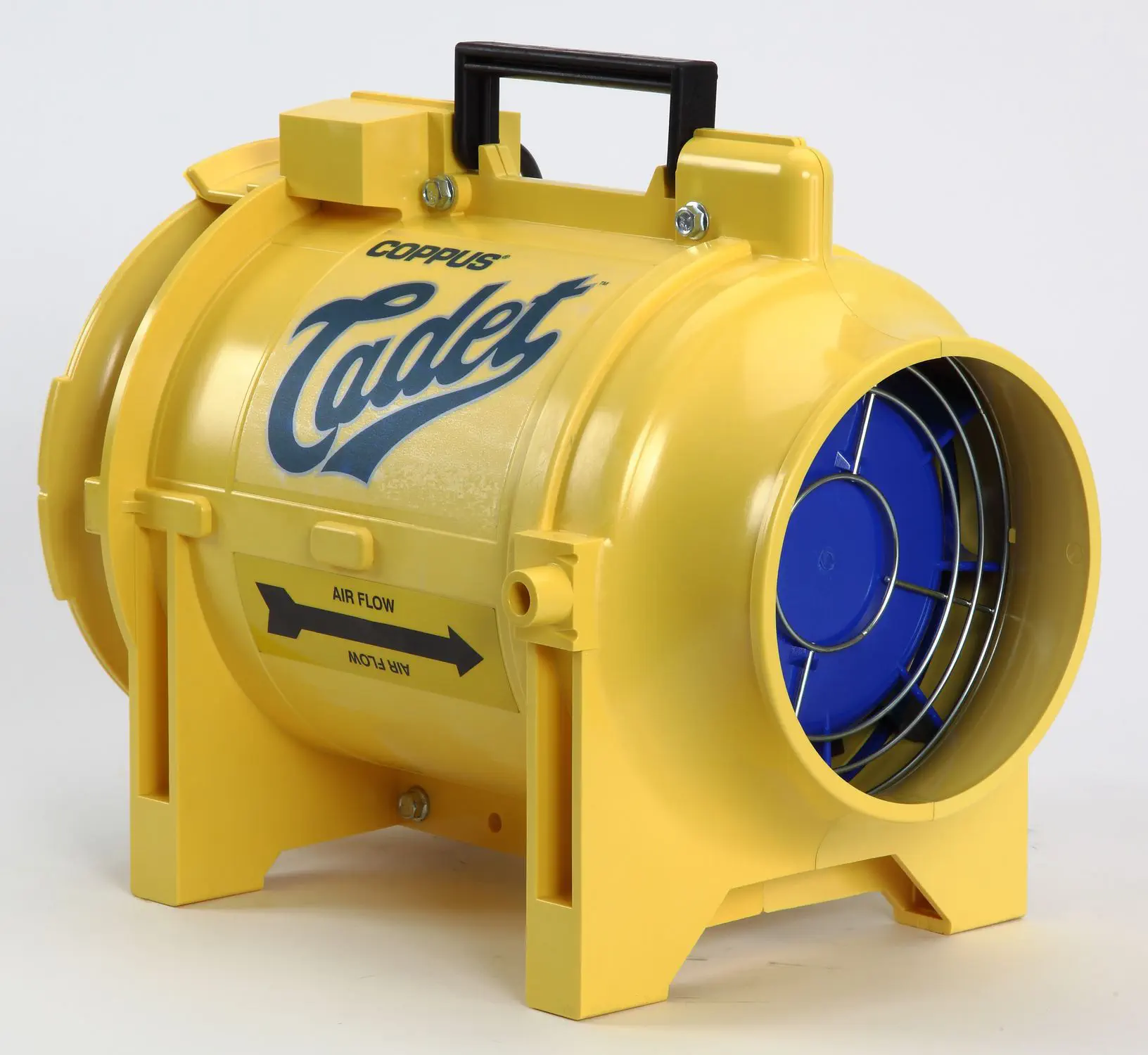

These rugged and economical ventilators deliver exceptional air flow in a compact, lightweight design – and their non-corrosive injection-molded housings are nearly indestructible. The Cadet is ideal for confined space ventilation of underground utilities and light manufacturing facilities. Hazardous and non-hazardous location models are available; multiple electrical options are available as well.
CADET® FEATURES & ADVANTAGES:
• Non-corrosive, flame-resistant, injection-molded housings
• Carrying handle
• Fixed guide vane for optimal performance
• Safety screens per OSHA; plated steel
• Easily attach 8” duct (203 mm) to inlet & outlet
• Glass-reinforced, polyester resin, spark-resistant fan blade
• Reversible, locking, inlet flange for ducted and non-ducted applications
• 60 Hz or 50 Hz AC motors
• 115V or 230V (60 Hz), and 110V or 220V (50 Hz) options available
• Auto thermal overload protection
• 15 ft (4.57 m) cord
• Plug end (115V only)
• 88 dBA @ 5 ft (1.5 m)

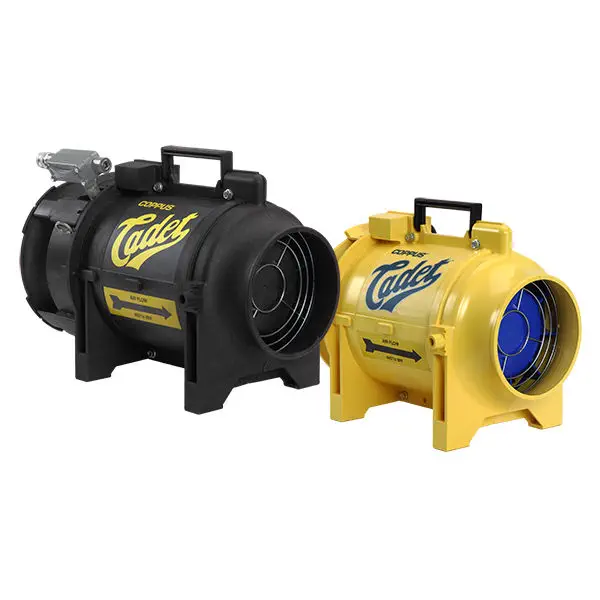

VAC FEATURES & ADVANTAGES:
• Non-hazardous location applications only
• Yellow polycarbonate/ABS blended stationary components
• Motor – single speed, ½ HP, totally enclosed
• Rocker on/off switch
VEP FEATURES & ADVANTAGES:
• Hazardous & non-hazardous location applications
• Black static dissipating components
• Motor – single speed, ½ HP, explosion proof
• Hazardous location motors rated NEC Class I, Division I, Group D & Class II, Division I, Groups E, F & G specifications
• Pull ring switch
ACCESSORIES:
• 8” Heavy Duty Duct (VAC)
• 8” Poly-vinyl Duct (VAC)
• 8” Conductive Duct (VEP)
• 8” Duct Storage Canister
