نام محصول:
خردکن ثانویه PDS450
نام انگلیسی:
Secondary shredder PDS450
برند:
Zhejiang SUPU Technology Co.,Ltd
مشخصات:
Type
secondary
Number of shafts
double-shaft
Application
for cardboard, paper
Other characteristics
high-torque
Power
17,600 W
Output
Min.: 600 kg/h
(1,323 lb/h)
Max.: 1,200 kg/h
(2,646 lb/h)
800 kg/h
(1,764 lb/h)
Rotor diameter
Min.: 210 mm
(8 in)
Max.: 450 mm
(18 in)
300 mm
(12 in)
Rotational speed
Min.: 18 rpm
(113 rad.min-1)
Max.: 26 rpm
(163 rad.min-1)
20 rpm
(126 rad.min-1)
Operating weight
Min.: 2,400 kg
(5,291.1 lb)
Max.: 3,600 kg
(7,936.6 lb)
2,600 kg
(5,732 lb)
Machine Length
6,362 mm
(250 in)
Machine Width
435 mm
(17 in)
Machine Height
1,900 mm
(75 in)
توضیحات:

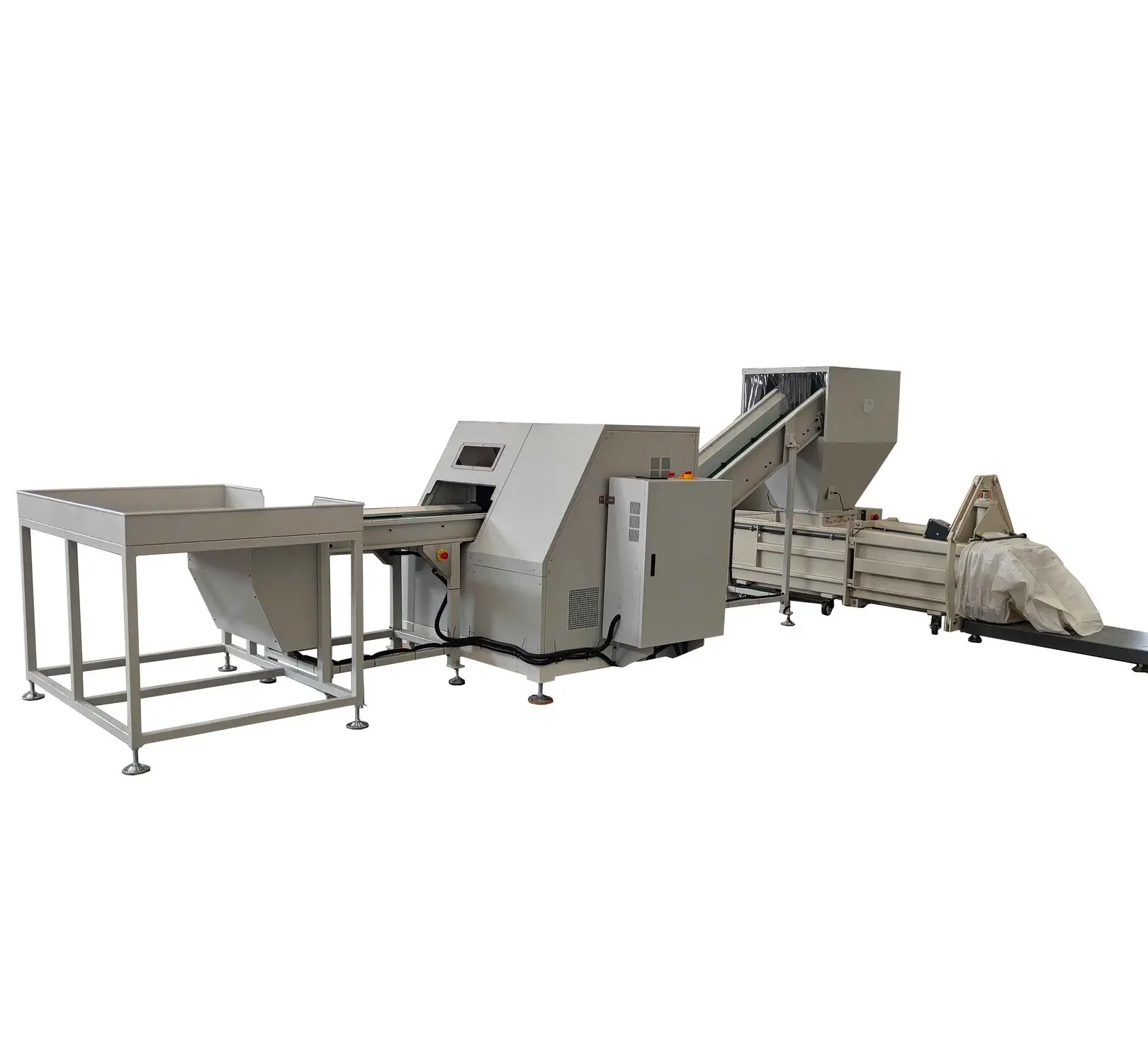

Supu Heavy Duty Paper Shredder and Baler
SUPU PDS450 & SP99 Heavy duty Paper shredder and Baler,suitable for waste Paper,Document,Books,Banknotes,recycling and security destruction purpose,final particle size for 9mm* 40-80mm with 600 – 1200 kg/hr working capacity,Machine design with industrial level construction with discharge shredded paper baling solution.
PDS450 & SP99 contain high speed Shredding system with high strength H13 alloy blade,paper sorting table,feeding and discharge conveyor,high efficiency hydraulic baling system and smart control PLC system. easy to process large paper shredding operation, it also saving the storage and transport cost.
Technical Date:
Model: PDS450 & SP99
Crushable Materials: Paper,books,banknote,cds
Shredder construction: Two shaft shredder
Blade construction: High speed cross cut blade
Shredding capacity :300 – 500 sheet A4 paper with file
Shredding Particles: 9mm * random or customized
Throughout per hour: 600 – 1200 KG per hour
Feeding width: 450 mm
Power/ Voltage:17.6KW / 380V/ 50HZ
Bale size :500(W) * 500(H) * 400 – 800 (L) mm
Machine size:6362(L) x4354(w) x 1900(H) mm
