نام محصول:
خردکن تک شفت سری SG

نام انگلیسی:
Single-shaft shredder SG series

برند:
Harden Machinery Ltd.

مشخصات:
Number of shafts
single-shaft

Application
for wood, for cardboard, solid & bulk waste, for household waste, paper, plastic, fabric

Power

Max.: 500,000 W

Min.: 260,000 W

Output
Max.: 30 t/h
(18 lb/s)

Min.: 3 t/h
(2 lb/s)

Operating weight
21 t, 22 t, 26 t, 27 t
(23.1 us ton, 24.3 us ton, 28.7 us ton, 29.8 us ton)

Machine Length
4,910 mm, 5,640 mm, 6,135 mm, 6,870 mm
(193 in, 222 in, 242 in, 270 in)

Machine Width
3,225 mm, 3,240 mm, 3,470 mm, 3,480 mm
(127 in, 128 in, 137 in, 137 in)

Machine Height
4,250 mm, 4,290 mm, 4,350 mm, 4,550 mm
(167 in, 169 in, 171 in, 179 in)

توضیحات:

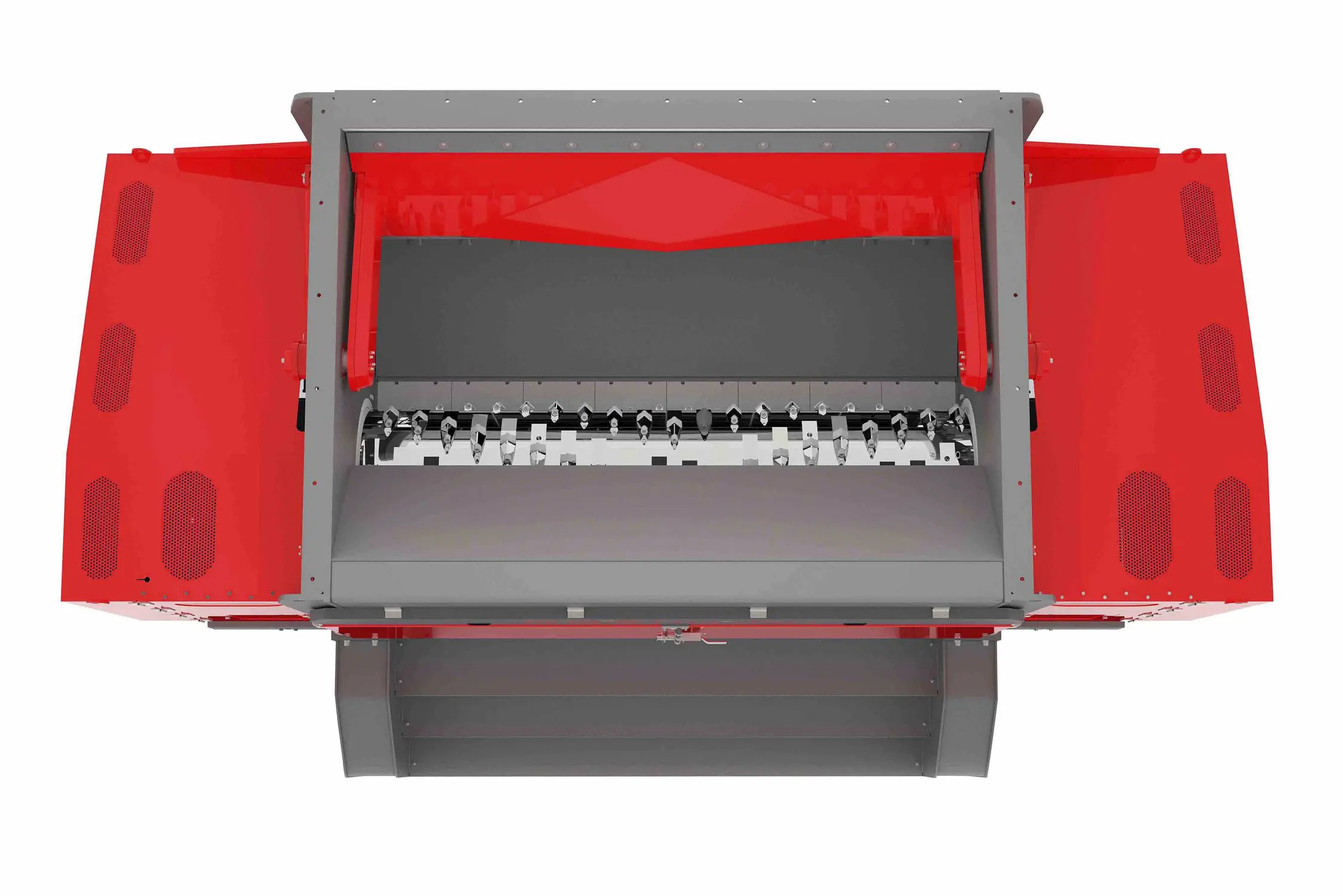

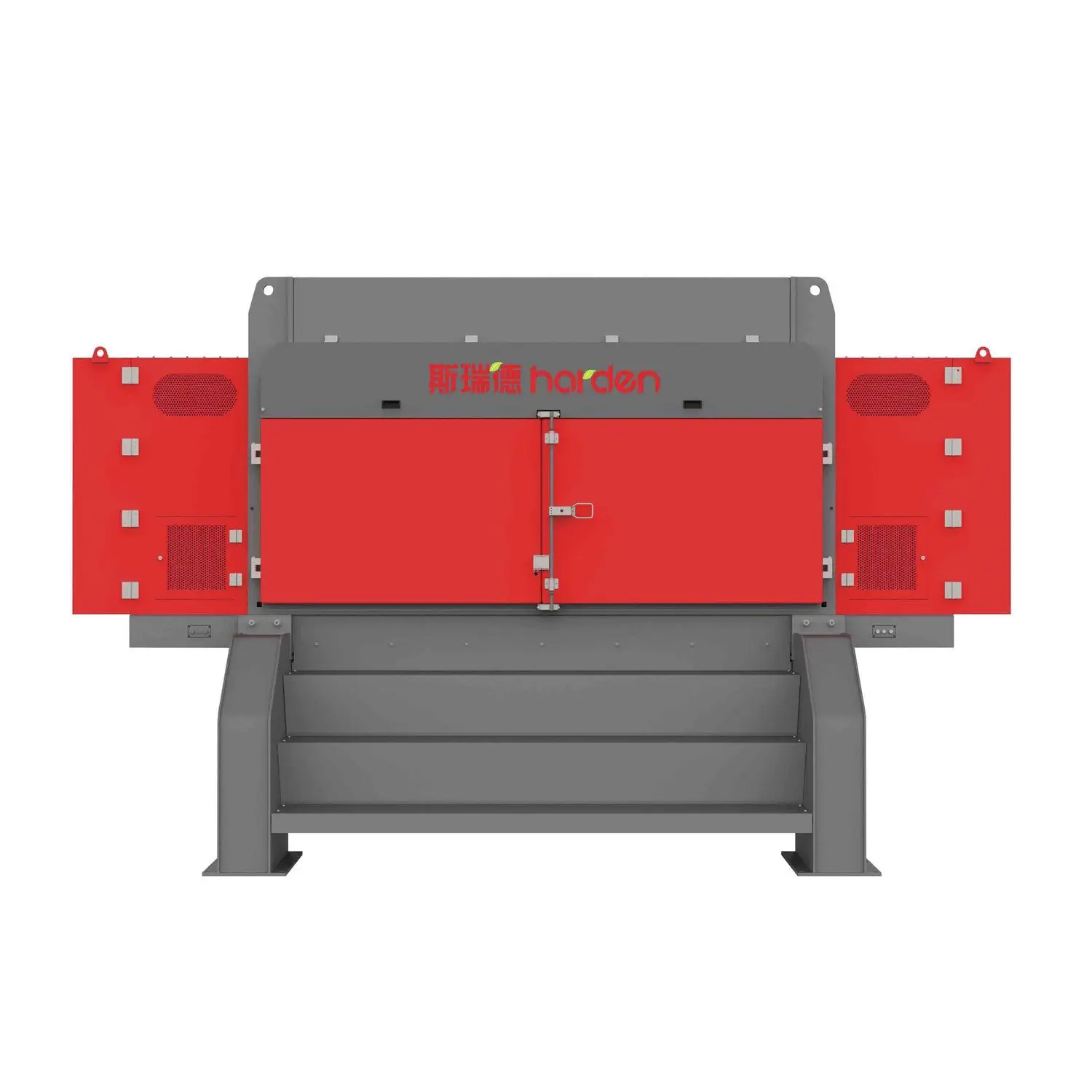

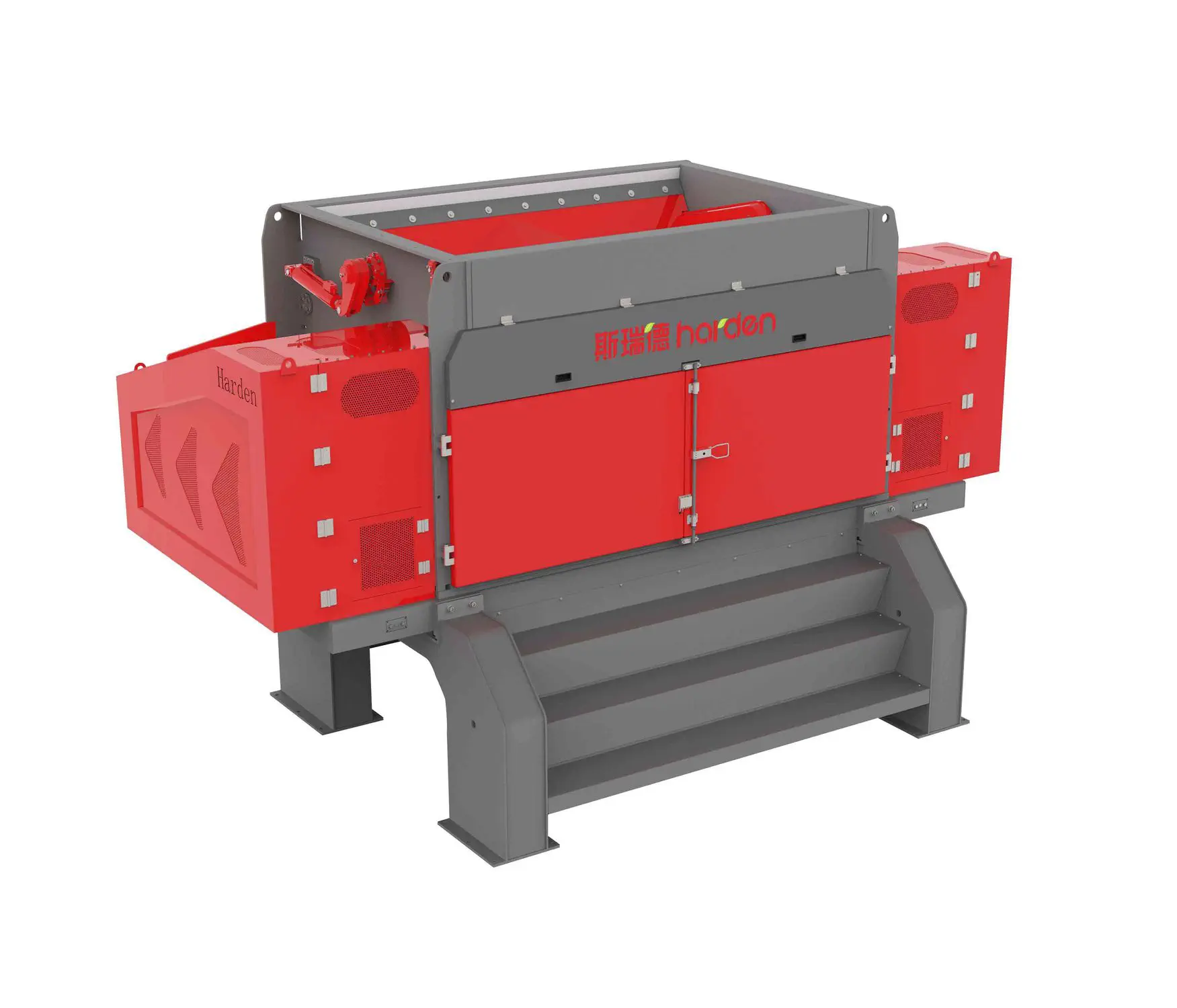

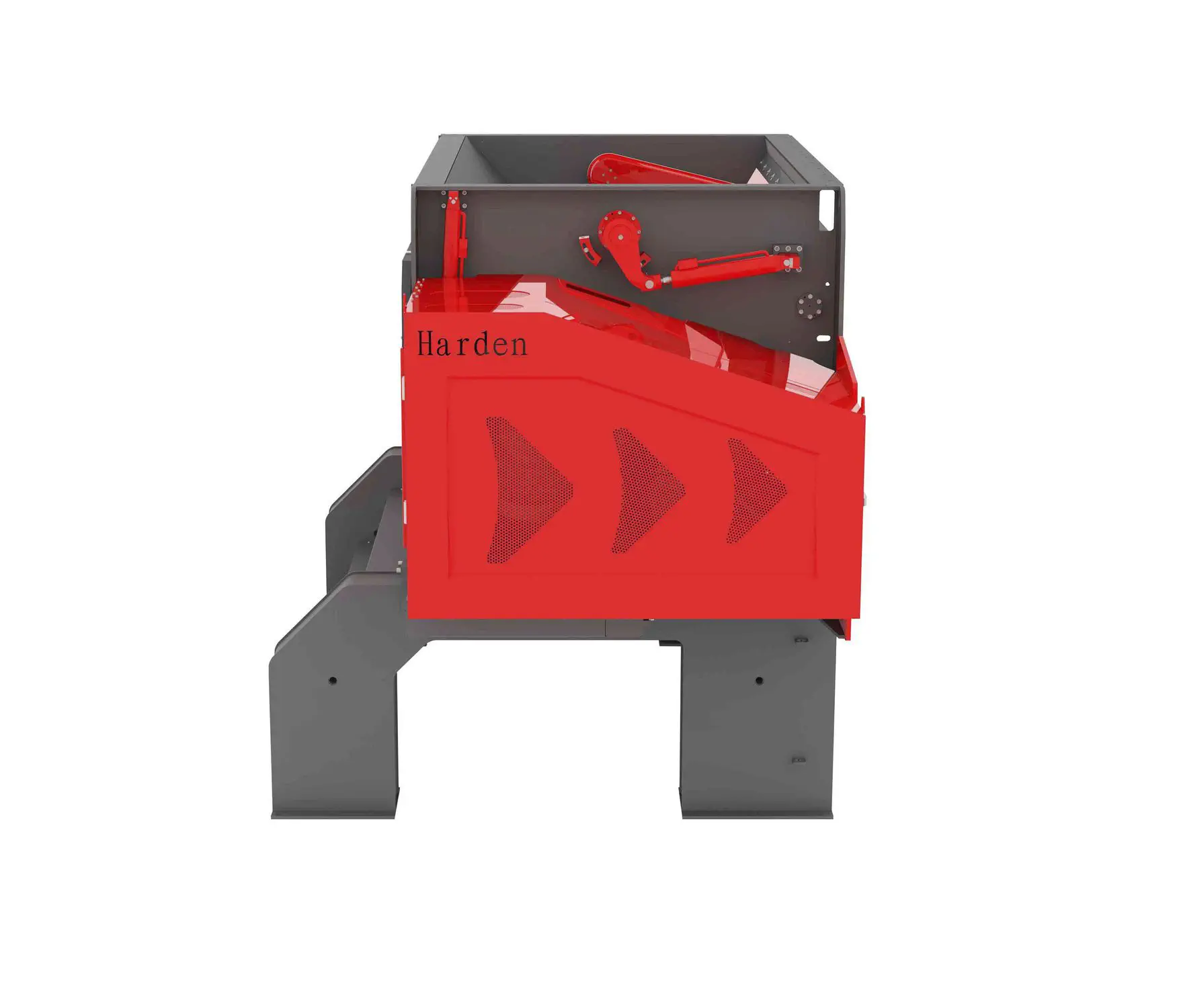

Single Shaft Shredder
Harden SG series large-scale single shaft shredder integrates a number of patented technologies such as intelligent built-in arc pressing, gap shearing, dense arrangement blades on cutter shaft, rapid gap adjustment. Based on the advanced European design and concepts, Harden has been focusing on providing equipment with higher throughput, lower operating cost, less maintenance time, safer and more user-friendly.

Harden has accumulated rich shredding experience of single shaft shredder, with specialized parameters in torque, speed, action program, blades for different material to be shredded. Whether it is flexible and high strength leather cloth or low density light material and other raw material, SM series large-scale single shaft shredder will process the material with excellent performance.

Model：SL1500、SL2000、SL2500、SG2200、SG2200R、SG3000、SG3000R
Motor Power（kw）：90、132、160、264-320、400、320-400、500
Size Cuting Chamber(A*B)(mm)：1555*1785、2055*1786、2555*1785、3085*2820、3815*2820
Machine Dimension (LxWxH)(mm): 6310x2630x3250
