نام محصول:
حلقه کابل
نام انگلیسی:
Cable reel
برند:
HUCHEZ
مشخصات:

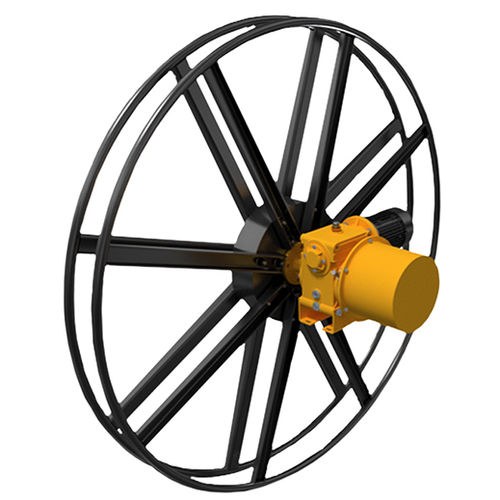

The motor driven reels allow you to collect an electrical or hydraulic cable to store it.
• – Adjustable capacity (up to 5kg).
• – Mechanical torque limiter to prevent cable breakage.
• – Compact and robust equipment.
• – 0.18kW motor – three phase 400V 50Hz.
• – Hydraulic or electric slip-ring.
• – Aluminium reels (mounted on the right or left side of the unit).
• – Options:
> Electrical control box.
> Marine version.
Technical characteristics Motor driven reels with electric slip-ring – 4 contacts, stroke 50 m
Weight (without cable) kg – 72
Cable section – Ø 9 to 17mm
Power supply – 25 A / 500 V
Number of contacts – 4
Slip ring – Electric
Average speed m/min – 17
توضیحات:
Type
cable
Drive mechanism
motorized
Reel material
aluminum
Other characteristics
rugged, compact
Hose/cable length
50 m, 100 m, 200 m(164’00” , 328’01” , 656’02” )
