نام محصول:
جفت سریع
نام انگلیسی:

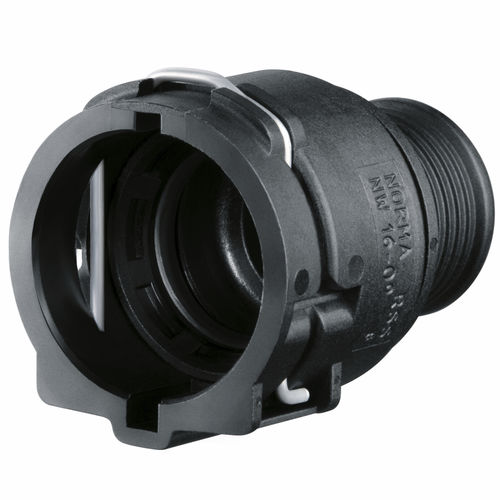

Quick coupling NORMAQUICK PS3
برند:
NORMA GROUP
مشخصات:
“Push & Seal” plastic quick connectors are an ideal means for the secure connection of cooling water and heating hoses as well as charged air systems.Spigot
Locking function
Simple spigot
0-ring is on the inside to prevent damage to seal
Sériés expérience since 1997, volume expérience of a total of 70 million PS3
New optimized version with reduced weight can be offered
PS3 quick connectors are made from recyclable materials. For our standard versions we use polyamide 6.6 with 30% glass fiber content.
The standard material for the 0-rings consists of peroxide-cured EPDM which is résistant to hot water. For PS3 quick connectors that are likely to be used in direct contact with codants we recommend PA 6.6 with 30% glass fiber content that has been stabilized against heat and hydrolysis.
توضیحات:
Applications
hydraulic, pneumatic
Attachment
screw-in, quick
Material
plastic
Other characteristics
standard, cooling
Diameter
Max.: 50 mm(1.969 in)Min.: 8 mm(0.315 in)
Operating pressure
Max.: 2 bar(29.01 psi)Min.: 0 bar(0 psi)
