نام محصول:
جریان روغن جریان روغن محدود کننده جریان
نام انگلیسی:

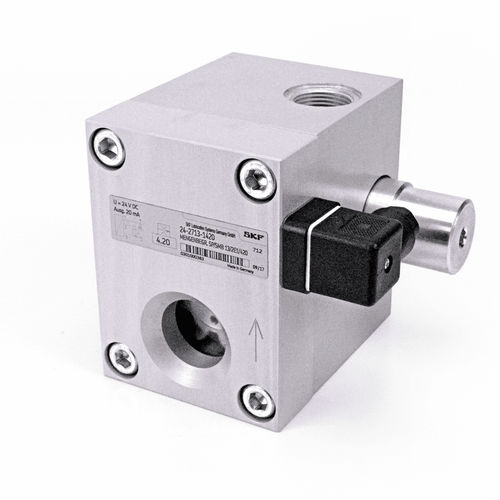

Oil flow lubrication system flow limiter SMB 13
برند:
SKF Lubrication Systems Germany GmbH
مشخصات:
For use in oil circulation systems
The SMB 13 flow limiter is designed to divide the main line flow into parallel, individual, volumetric flow quantities and to “limit” these according to requirements. The flow is generated independently of system pressure and virtually independently of viscosity, guaranteeing a constant flow.
The SMB 13 provides a flow rate from 6 to 38 l/min (12.6–80.3 pts/min) and a pressure range up to 50 bar (725 psi). The flow limiter has a built-in, gear-wheel-type flow indicator for electronic and visual monitoring of oil flow. Every rotation creates a signal offering information about the flow rate.
The SMB 13 flow limiter is a perfect soltution for applications with changing ambient temperatures and the need for a stable oil flow such as in oil circulation lubrication systems.
Features and benefits
Stable oil flow rate regardless of pressure, temperature or viscosity changes
Visual and electronic monitoring with real flow indication
Easy start-up with fixed flow rate via pre-selected nozzle sizes
Adaptation of flow rates by plug-in nozzles
Optional ATEX version for Ex II 2G c TX Gb, Ex II 2D c TX Db
Optional connection to customer data control system
Extremely robust design
Applications
Mining, Cement and Oil & Gas industry
Metal forming, machine tools
Pulp & Paper industry
Industrial gearboxes
توضیحات:
Options
for oil flow lubrication systems
