نام محصول:
جریان روغن جریان روغن محدود کننده جریان
نام انگلیسی:

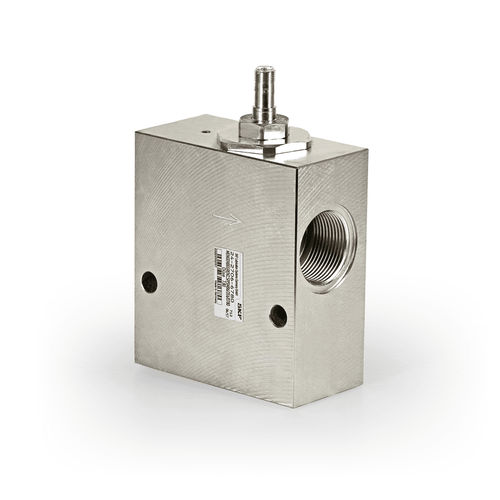

Oil flow lubrication system flow limiter SMB 3
برند:
SKF Lubrication Systems Germany GmbH
مشخصات:
For use in oil circulation systems
The SMB 3 flow limiter is designed to divide the main line flow into parallel, individual flows. The flow is generated independently of system pressure changes and virtually independently of viscosity, guaranteeing a constant flow.

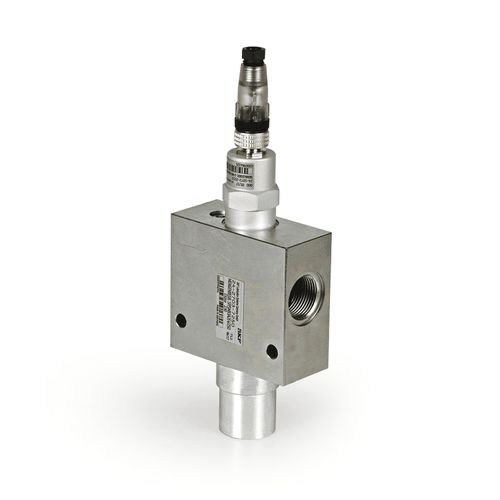

The SMB 3 provides a flow rate from 6 to 38 l/min (12.6–80.3 pts/min) and a pressure range of up to 200 bar. The flow limiter offers oil flow monitoring with a signal transmitter or piston detector. These indicators create a fault signal when the flow rate drops to approximately 85%.
The SMB 3 flow limiter is a perfect soltution for applications with changing ambient temperatures and the need for a stable oil flow such as in oil circulation lubrication systems.
Features and benefits
Stable oil flow rate regardless of pressure temperature or viscosity changes
No need for system pressure control, a pressure relief valve is sufficient
Simple monitoring by signal transmitter
Easy start-up with fixed flow rate via pre-selected nozzle sizes
Adaptation of flow rates by plug-in nozzles
High operating temperature up to +100 °C
Optional ATEX version Ex II 3 cII CT6
Extremely robust design
Applications
Mining, Cement and Oil & Gas industry
Metal forming, machine tools
Pulp & Paper industry
Industrial gearboxes
توضیحات:
Options
for oil flow lubrication systems
