نام محصول:
جداکننده جریان گردابی
نام انگلیسی:
Eddy current separator
برند:
مشخصات:

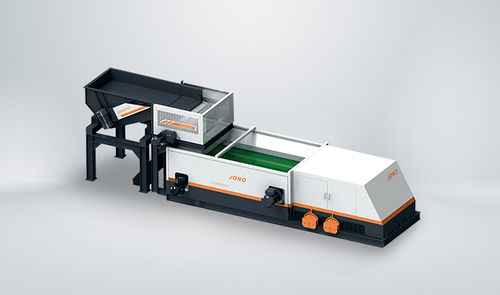

The Eddy Current Separator (ECS) is an advanced metal sorting unit that is capable of separating non-ferrous metals such as aluminium,copper,brass,alloy from dry recyclables. JONO eddy current separator can produce higher purity and increased yield of better separation of aluminum cans from PET plastic beverage containers.Nowadays it became the most economical beverage bottle sorting and recycling equipment.
The principle of eddy current separator is to separate conductor from non-conductor by using the transformed magnetic field of conductor to produce force.
The magnetic roller is installed at the discharging end of the high-speed belt and rotates at high speed during the operation of the equipment. Materials entering the high-speed belt are uniformly distributed on the surface of the belt. When the metal enters the magnetic field area of the magnetic roller, force is generated by cutting the magnetic induction line.Nonferrous metals do free falls and fall into nonferrous areas.The application of eccentric magnetic pole technology can effectively ensure the separation rate and unit time processing capacity. Eccentric magnetic pole technology can effectively ensure the separation rate and processing capacity.
Working Principle
The principle of the eddy current separator is to use the magnetic field of the electric conductor transform to produce the force and to separate the conductor from the non-conductor. Magnetic roller is installed on the high-speed belt discharging end, with high speed rotary motion during operation, the material in the high-speed belt were uniformly distributed in the surface of the belt, when the metal into the magnetic roller magnetic field,
توضیحات:
Separated substance
for non-ferrous metals, dry materials
Technology
eddy current, ECS
Application domain
for the recycling industry
Other characteristics
plastic
Filtration size
Max.: 5 mm(0.197 in)Min.: 2 mm(0.079 in)
