نام محصول:
توربو چند مرحله ای
نام انگلیسی:

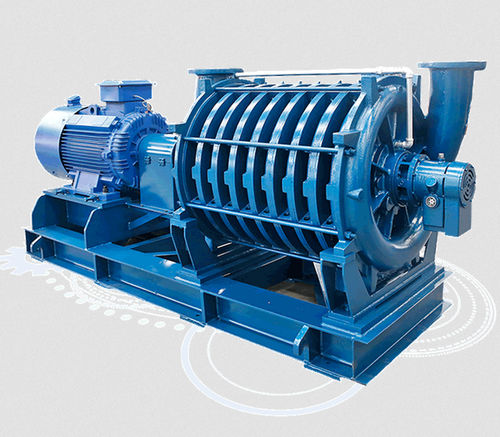

Multi-stage turbo-blower MC series
برند:
Shandong Zhangqiu Blower Co.,Ltd
مشخصات:
MC Series Multi-stage Centrifugal Blower-Cast Iron Structure is an efficient blower product with advanced level in the world, which is developed by importing American technology. This series of product use a number of patented technology, Compared with domestic products, we have obvious advantages in low noise, low vibration and high efficiency.
Feature：
Blower casing and return vanes are optimally designed to match the impeller sufficiently,lower flow losses as it is streamline designed.
Combined Impeller’s aerodynamic efficiency is high by applying ternary flow meridian plane and compound profile technology.
Inlet guide rings are provided for impeller to improve its fluidity.
Aerofoil style return vanes design getting higher converting efficiency of static pressure energy and lower flow losses.
Blower performance is optimized by applying fluid-analysis technology and its polytropic efficiency up to 78%.
The requirement of both 50Hz and 60Hz can be fulfilled on the same blower.
Wider adjustable range and better performance.
Impeller is strictly dynamic balanced, lower vibration and higher reliability.Low noise.
Blower structure is advanced and reasonable, less wearing parts, convenient installation, operation and maintenance.
توضیحات:
Number of stages
multi-stage
Flow
Min.: 20 m³/min(706.293 ft³/min)Max.: 1,500 m³/min(52,972 ft³/min)
Operating pressure
Min.: 19,600 Pa(2.843 psi)Max.: 147,000 Pa(21.321 psi)
Nominal power
Min.: 11 kW(14.956 hp)Max.: 3,150 kW(4,282.807 hp)
Weight
Min.: 700 kg(1,543.24 lb)Max.: 12,600 kg(27,778.25 lb)
