نام محصول:
توربو دم
نام انگلیسی:

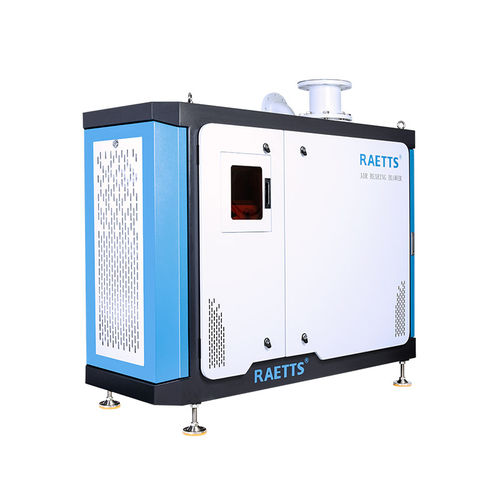

Air turbo-blower EXPL-10-400HP
برند:
RAETTS
مشخصات:
The air bearing high-speed turbo blower adopts the integrated design concept of air bearing and permanent magnet synchronous super high-speed motor (20,000 rpm).
It abandons the gearbox accelerator and coupling and lubrication system of the traditional centrifugal blower. And is the most efficient high speed turbo blower in the world at present.
Even after another 100 years, RAETTS air bearing blowers with a national level IE4 level of energy efficiency is still the standard of the energy-saving blower.
1. Smart touch control panel
The Explorer-Series uses a 7-inch smart touch screen control panel to display flow, power, speed, air pressure, temperature, and more.
The model with more than 250 horsepower adopts the 10-inch intelligent touch screen control panel, which makes the operation more convenient and can realize more operation functions, such as START, LOAD, STOP, and EMERGENCY functions, realizes more intelligence.
2. Permanent magnet inverter
The Explorer Series permanent magnet high-speed motor is composed of the most advanced German electromagnetic design technology and the permanent magnet inverter system independently developed by RAETTS. Based on the excellent motor second stage cooling technology, the wiring of the inverter is very simple.
Secondly, the amount of hot gas generated by the inverter does not need to be treated separately, and the heat is taken in by the motor BOV system and discharged directly from the spout.
توضیحات:
Type
air
Flow
Min.: 5 m³/min(176.573 ft³/min)Max.: 40 m³/min(1,412.587 ft³/min)
