نام محصول:
تنظیم کننده هوا
نام انگلیسی:

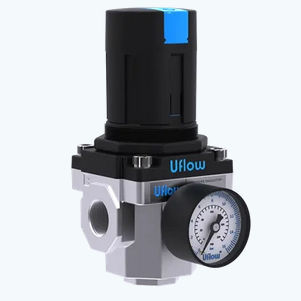

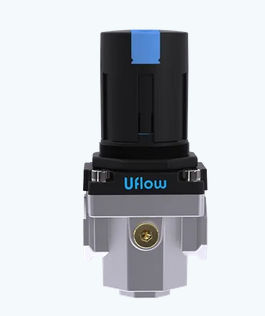

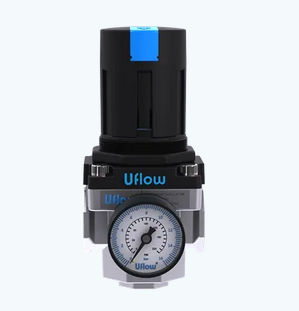

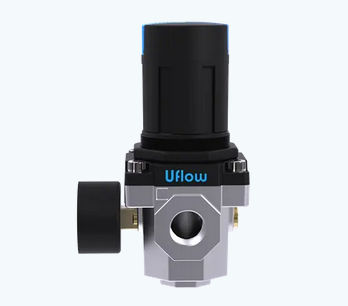

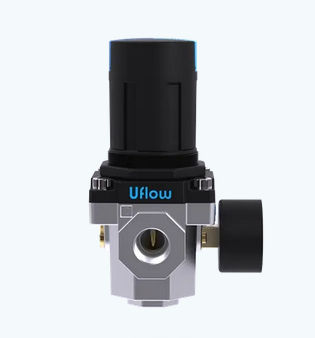

Air regulator PD-R series
برند:
UFLOW AUTOMATION
مشخصات:
> – installation: – Any Position
> – optional accessories: Clamp, Modular mounting kit. Pressure Gauge
Note: – Supply Pressure 7 bar, pressure drop Ap = 0.5bar (For Standard Models)
Features
Confirm to ISO 6953 -1 –
Suitable for panel and modular mountings –
Nonraising ‘Push To Lock’ Adjusting Knob For Locking At Any Set Pressure
Diaphragm operated, Self relieving type –
Pressure Compensated By Balanced Poppet
Good Flow And Reguldting Chdracteristics
Pressure Setting
& Pull the knob and adjust by turning the knob clockwise to increase the pressure. Push the knob
back to its locked position. (Turning the knob counter clockwise will reduce the pressure)
توضیحات:
Product
for air
Number of stages
single-stage
Material
brass, steel, stainless steel, aluminum
Pressure
Max.: 15 bar(217.56 psi)Min.: 0 bar(0 psi)
Orifice diameter
0.25 in, 0.375 in, 0.5 in, 0.75 in, 1 in
Temperature
Max.: 60 °C(140 °F)Min.: -10 °C(14 °F)
