نام محصول:

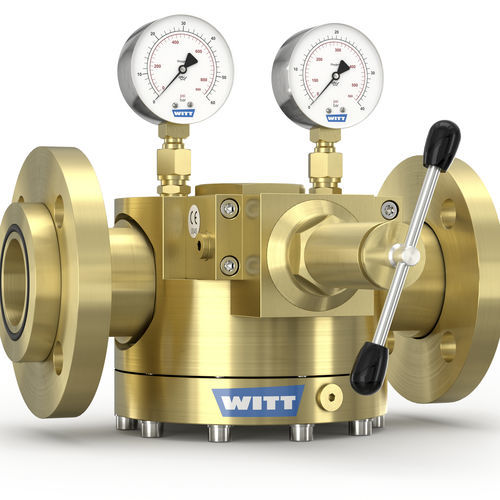

تنظیم کننده فشار گاز
نام انگلیسی:
Gas pressure regulator 757LE/S
برند:
WITT-Gasetechnik
مشخصات:
maximum pressure stability even during flow and temperature fluctuations
suitable for various technical gases
ready-to-use
option: lockable spindle hood against unauthorized adjustment
also available in Stainless Steel
High performance dome-loaded pressure regulator set.
For high and varying flows requiring maximum pressure stability.
Features:
Pilot Control Tube (PCT)
One of the features enabling highly accurate control of outlet pressure
Balanced Seat Design (BSD)
Further enabling control precision, high reliability and low maintenance
A complete solution, ready to use
With integrated pilot pressure regulator, and stainless steel pressure gauges, completely assembled and tested
Own-medium controlled
Enabling autonomous operation (no separate gas supply required)
Closed system
Self-relieving design, but no gas is released to atmosphere
Simple to install and operate
Removable spindle enables simple setting of the required outlet pressure
Can be positioned at any angle / orientation
For indoor and outdoor installation.
Glycerine-filled manometer, unfilled version for oxygen
Operation / Usage:
Ideal for process gas supply where pressure accuracy is required even when inlet pressures and flow rates are varying.
High flow rates and outlet pressure accuracy are achieved, even when the difference between inlet and outlet pressures is small.
توضیحات:
Product
for gas
Technology
dome-loaded
Number of stages
single-stage
Material
brass
Applications
industrial, precision
Other characteristics
with pressure gauge, high-precision, proportional, pilote-operated, for high flow rates, rugged, high-performance, relieving, flange, bypass
Pressure
Max.: 30 bar(435.11 psi)Min.: 0.5 bar(7.25 psi)
Flow
15 m³/h(529.72 ft³/h)
Orifice diameter
50 mm(1.969 in)
Temperature
Max.: 50 °C(122 °F)Min.: -30 °C(-22 °F)
