نام محصول:
تنظیم کننده فشار گاز
نام انگلیسی:
Gas pressure regulator
برند:
Vögtlin Instruments GmbH – Gas Flow Technology
مشخصات:
The electronic red-y smart pressure controller combine the reliable technology of our digital mass flow controllers with electronic pressure control.
The devices automatically control a predefined process pressure and at the same time measure and/or limit the flow rate. On-the-fly switching between pressure control and flow control offers maximum flexibility.
1 Device – 3 Functions
The pressure controller combines three functions:
Pressure controller
Pressure controller with flow measurement/limitation
Flow controller with pressure measurement
Instrument Versions
Integrated pressure control
Accuracy:± 0.5 % of full scale
Integrated back pressure control
Accuracy:± 0.5 % of full scale
Pressure control with external pressure transmitters
Pressure controller with gas mixer function
It‘s a red-y smart
The pressure controllers combine the innovative equipment design of the red-y smart series with the development competence of Vögtlin Instruments GmbH.
High-quality components ensure long and trouble-free operation.
Analog & Digital
The pressure controllers make use of the latest CMOS technology and have a digital (Modbus RTU) and analog interface as standard*.
Profibus interface is available as option (Profibus DP-V0/DP-V1).
* analog output for actual value flow only

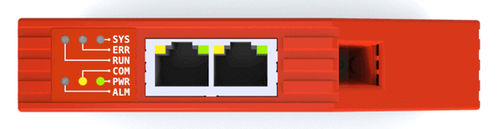

Operating Status Indication
The instruments offer a built-in LED status indication
get red-y Software
Efficient device management with the free get red-y software:
View flow rate & temperature
Change set points
Select measured gas
Visualization of measured data
Adjusting control parameter
Optional modules get red-y software:
Datalogging
Gasmixing
Adjustment/Calibration
توضیحات:
Product
for gas
Technology
differential
Number of stages
single-stage
Output signal
analog output, RS485, Modbus, PROFIBUS
Protection level
IP67, IP50
Applications
industrial
Other characteristics
digitall
Pressure
Min.: 0.5 bar(7.25 psi)Max.: 10 bar(145.04 psi)
Flow
Min.: 0 l/min(0 us gal/min)Max.: 450 l/min(118.88 us gal/min)
Orifice diameter
0.25 in, 0.5 in
Temperature
Min.: 0 °C(32 °F)Max.: 50 °C(122 °F)
