نام محصول:

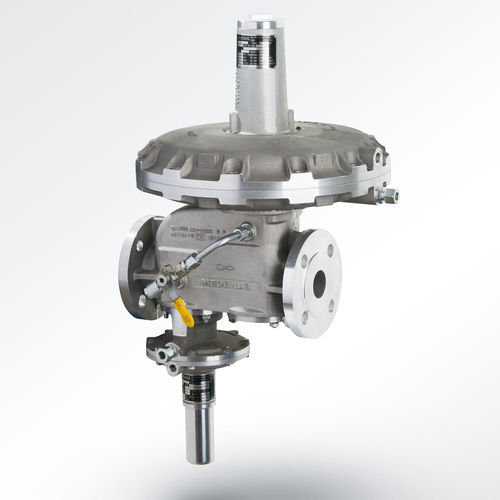

تنظیم کننده فشار گاز
نام انگلیسی:
Gas pressure regulator RS 254
برند:
MEDENUS Gas- Druckregeltechnik GmbH
مشخصات:
The MEDENUS gas pressure regulator type RS254 ensures a constant outlet pressure – regardless of the primary (inlet) pressure – when the gas usage varies and ensures a quick pressure regulation when the flow rate abruptly changes. The inbuilt safety shut off valve ensures a safe shut off if the pressure is too high or too low.
The gas pressure regulator RS254 is suitable for gases in accordance with DVGW Code of Practice G260/262 and all other neutral and non-corrosive gases (others upon request).The RS254 is available with flange connections from DN25 to DN200 and working pressure up to 16,0 bar. All gas pressure regulators are certified by DVGW and CE.
توضیحات:
Product
for compressed air, for gas, for inert gases, for air, for LPG, for oxygen, for hydrogen, for nitrogen, for natural gas, propane, for CO2, for CNG
Technology
membrane, spring
Number of stages
single-stage
Material
cast aluminum
Applications
industrial, precision, high-pressure, for pneumatic applications, low-pressure, for vacuum, for variable air volume, HVAC, for pressure calibration
Other characteristics
high-flow, compact, line, high-precision, CE certified, explosion-proof, with solenoid valve, bypass, motorized, corrosion-resistant, proportional, with integrated safety, direct-operated, low-speed, mechanically-operated, flange, modular, electropneumatic, vertical, high-precision, rugged, high-performance, high-temperature, zero-bleed, direct-acting, tracking, medium-flow, ultra low-pressure, high-purity
Pressure
Max.: 16 bar(232.06 psi)Min.: 0 bar(0 psi)
Flow
Max.: 15,000 m³/h(529,720 ft³/h)Min.: 5 m³/h(176.57 ft³/h)
Orifice diameter
Max.: 115 mm(4.528 in)Min.: 17.5 mm(0.689 in)
Temperature
Max.: 60 °C(140 °F)Min.: -20 °C(-4 °F)
