نام محصول:
تنظیم کننده فشار گاز
نام انگلیسی:

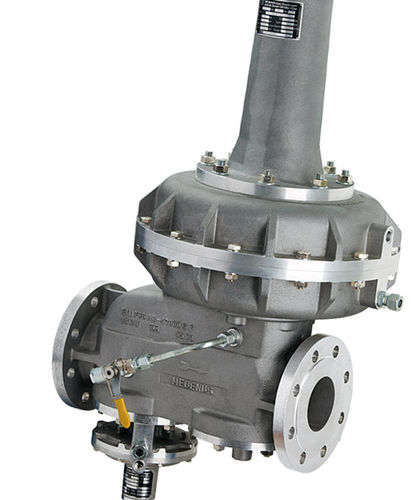

Gas pressure regulator RS 250
برند:
MEDENUS Gas- Druckregeltechnik GmbH
مشخصات:
The MEDENUS gas pressure regulator type RS250 ensures a constant outlet pressure – regardless of the primary (inlet) pressure – when the gas usage varies and ensures a quick pressure regulation when the flow rate abruptly changes. The inbuilt safety shut off valve ensures a safe shut off if the pressure is too high or too low.
The gas pressure regulator RS250 is suitable for gases in accordance with DVGW Code of Practice G260/262 and all other neutral and non-corrosive gases (others upon request).The RS250 is available with flange connections DN25 to DN100 and working pressure up to 8,0 bar. All gas pressure regulators are certified by DVGW and CE.
توضیحات:
Product
for compressed air, for gas, for inert gases, for air, for oxygen, for hydrogen, for nitrogen, for LPG, for natural gas, propane, for CO2, for CNG
Technology
membrane, spring
Number of stages
single-stage
Material
cast aluminum
Applications
industrial, precision, high-pressure, for pneumatic applications, low-pressure, for vacuum, for variable air volume, HVAC, for pressure calibration, sanitary, for hydraulic applications
Other characteristics
line, compact, high-precision, ultra low-pressure, CE certified, high-flow, electropneumatic, low-speed, zero-bleed, mechanically-operated, proportional, flange, vertical, tracking, explosion-proof, with integrated safety, modular, rugged, high-performance, motorized, direct-acting, medium-flow, high-precision, bypass, corrosion-resistant, direct-operated
Pressure
Max.: 8 bar(116.03 psi)Min.: 0 bar(0 psi)
Flow
Max.: 20,000 m³/h(706,293.33 ft³/h)Min.: 5 m³/h(176.57 ft³/h)
Orifice diameter
Max.: 115 mm(4.528 in)Min.: 17.5 mm(0.689 in)
Temperature
Max.: 60 °C(140 °F)Min.: -20 °C(-4 °F)
