نام محصول:
تنظیم کننده فشار گاز

نام انگلیسی:
Gas pressure regulator UR-Z700 series

برند:
HORIBA STEC

مشخصات:

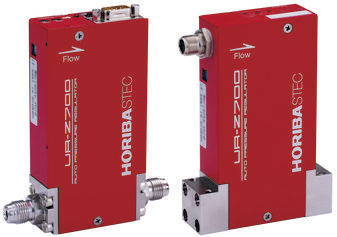

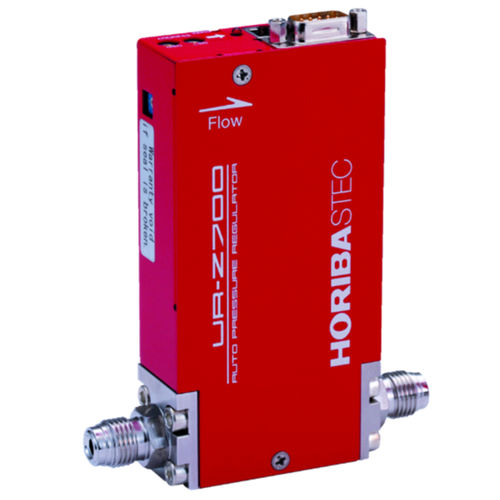

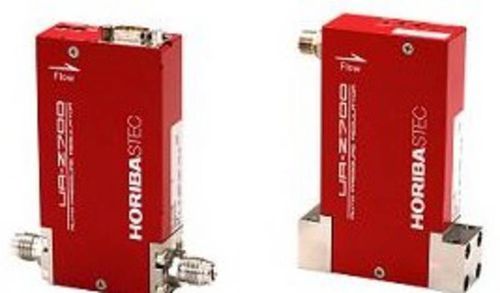

The UR-Z700 Series is the auto pressure regulator equipped with a digital control circuit that uses a high-accuracy pressure sensor and a high-resolution, fast-response piezoelectric valve. It can be remotely operated by various external signals and automatically controls pressure. The all-metal gas contacting part minimizes dead volume, making it ideal for corrosive gases and low vapor pressure gases.

FEATURES

Stable pressure control even in lines that experience instantaneous fluctuations
Simplification of the gas line enables significant reduction of dead volume
Vessel pressure during liquid bubbling can be set arbitrarily
Supports digital/analog, DeviceNet™, and EtherCAT® communication

توضیحات:
Product
gas

Technology
cartridge

Number of stages
single-stage

Output signal
digital

Applications
industrial

Other characteristics
high-precision, digitall

Pressure
Min.: 0.01 bar(0.15 psi)Max.: 9.5 bar(137.79 psi)

Flow
Min.: 0 l/min(0 us gal/min)Max.: 0.02 l/min(0.01 us gal/min)

Temperature
Min.: 5 °C(41 °F)Max.: 50 °C(122 °F)
