نام محصول:
تنظیم کننده فشار گاز
نام انگلیسی:

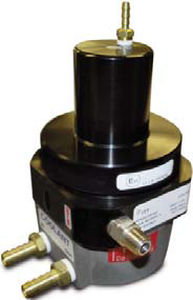

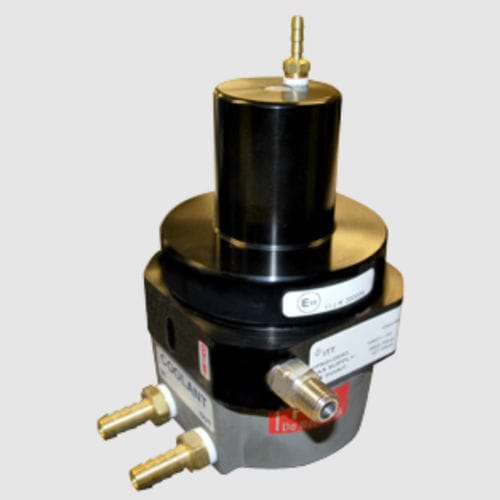

Gas pressure regulator HPNGV2
برند:
Conoflow
مشخصات:
The ITT Conoflow HPNGV Series Gas Regulator has earned a reputation for world class reliability and performance. Over a decade of service in the most demanding applications has proven the HPNGV Gas Regulator is the choice for OEM vehicle, engine and fuel systems. The HPNGV Gas Regulator is proven to be a safe and reliable pressure control element. Meets the requirements of ISO 15500 and NGV 3.1
Specifications
Regulated Media: Compressed natural gas
Inlet Pressure: 250 to 3600 psig (1.72 MPa to 24.84 MPa) to meet all performance specifications.
Nominal Output Pressure Range: Factory preset 45-150 PSIG (0.31-1.03 MPa) Set Point. The typical range of delivery pressure is +15 / -10 psi from specified setting throughout the range of inlet pressure, temperature and flow.
Gas Flow Rate: Up to 165 lbs/hr (0-82 kg/hr) (flow varies by application, consult the factory for data)
Internal Filtration: 40 Micron Corrosion Proof Sintered Element
Leakage (Ambient and Valve): Bubble Tight
Moisture Tolerance: To 7 lbs Water per Million Standard Cubic Ft.
Temperature Range (Ambient, Inlet and Coolant): -40ºF to +257ºF (-40ºC to 125ºC)
Vehicle Applications: Normally aspirated or Turbocharged EFI Spark Ignition Engines
Gas Inlet: SAE-6 (9/16-18 Thread) per SAE Specification J1926
Gas Outlet: SAE-8 (3/4-16 Thread) per SAE Specification J1926
Standard Coolant: 3/8” Hose Connection per SAE Specification J962
Mounting Threads: M8 x 1.25 x 18mm, 2 Places 45.7mm Apart Suitable for 20mm Bolts
Weight: HPNGV2 Regulator 4.03 lb. (1.88 kg); HPNGV2 Regulator with sensor 4.25 lb. (1.93 kg)
Approvals: ISO 15500, NGV3.1
U.S. Patents: 5,890,512 and 5,443,083
توضیحات:
Product
gas, for fuel
Technology
membrane
Number of stages
single-stage
Applications
industrial
Other characteristics
preset
Pressure
Max.: 3,600 psiMin.: 250 psi
Orifice diameter
8 mm(0.315 in)
Temperature
Max.: 125 °C(257 °F)Min.: -40 °C(-40 °F)
