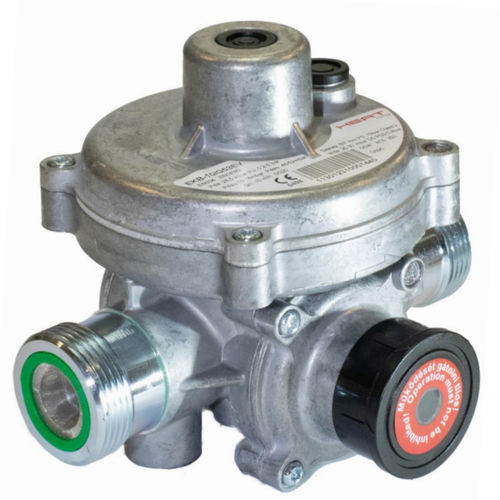

نام محصول:
تنظیم کننده فشار پروپان
نام انگلیسی:
Propane pressure regulator EKB series
برند:
Heat Group
مشخصات:
The function of the two stage EURO KOMBIBLOCK EKB type gas pressure regulator is to reduce the
outlet pressure to a previously given, constant level, irrespective of the level of inlet pressure (0,1-10,0
bar) and the flow rate. It is applied to supply gas for houses, offices, social buildings and industrial
establishments. The EKB with a high-level accuracy in regulation (AC 5, SG 20) and variety in all-mains
connection offers a wide range of many-sided combination.
As standard, the two stage gas pressure regulator are fitted with a safety shut-off valve. A range of
connectors and designs with or without flanges internal or external threaded, inline or corner
version, thermal gas cut-off (HTB) safety membrane or pressure cut-off for supply interruption protection,
safety blow-off valve and flow rate limitation devices are available.
The gas pressure regulator is designed according to PED 2014/68/EU.
Technical data
Outlet pressure range: pas 13 ÷ 100 mbar
Set range of safety shut-off valve:
pso 30 ÷ 160 mbar
psu 6 ÷ 75 mbar
Regulatory class: AC 5/10
Lock-up pressure class: SG 20
Accuracy: pso/psu
AGo 10/AGu 30
Flow rate: see diagram
Position of installation: discretionary
Thermic release cc.: 105 °C
توضیحات:
Product
for CO2, gas, heated gas, for butane, for inert gases, for air, for oxygen, for nitrogen, propane, for methane, for hydrogen, for natural gas, for CNG, for sour gas, for LPG, for liquefied natural gas
Technology
membrane, piston, spring
Number of stages
two-stage
Output signal
analog
Material
cast aluminum, zinc-plated steel, plastic, NBR
Applications
industrial, low-pressure, HVAC
Other characteristics
compact, flange, direct-acting, with integrated safety, with balanced valve
Pressure
Min.: 0.1 bar(1.45 psi)Max.: 10 bar(145.04 psi)
Flow
Min.: 0 m³/h(0 ft³/h)Max.: 25 m³/h(882.87 ft³/h)
Orifice diameter
25 mm(0.984 in)
Temperature
Min.: -30 °C(-22 °F)Max.: 60 °C(140 °F)
