نام محصول:
تنظیم کننده فشار هوا
نام انگلیسی:
Air pressure regulator EPP4 series
برند:
Parker Hannifin France SAS
مشخصات:
The EPP4 family is an electro pneumatic pressure regulator. The COMFORT range regulators have a second M12 connector that can be used to connect the device to a PC to easily configure the regulation parameters.
Product Overview

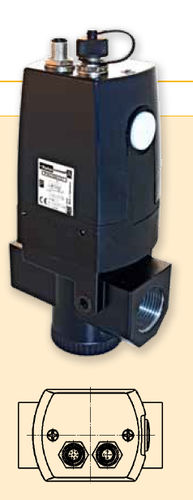

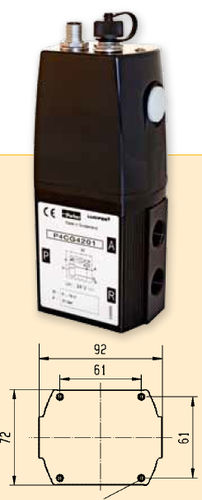

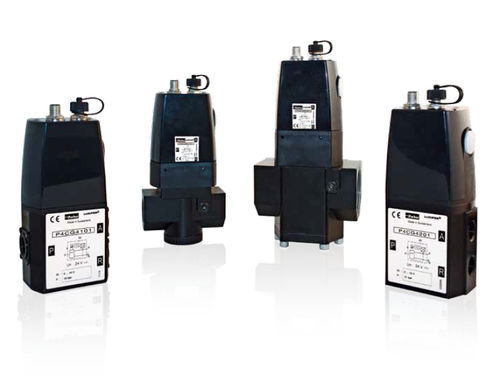

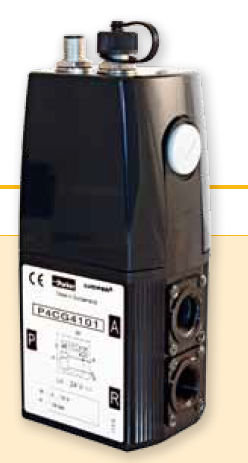

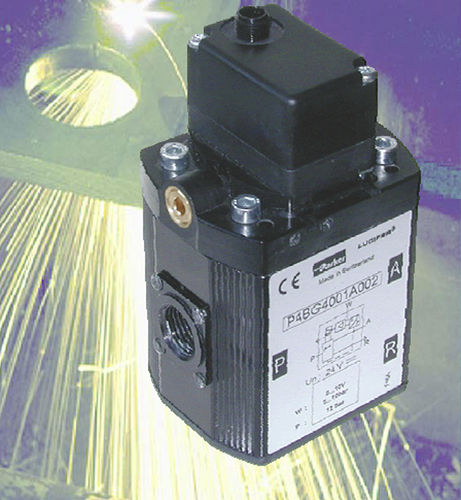

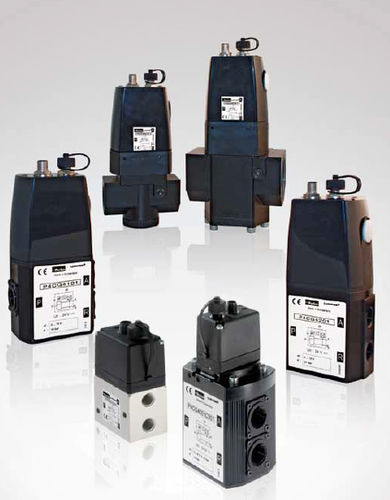

The Parker EPP4 family is an electro pneumatic pressure regulator with an integrated electronic system. The COMFORT range regulators have a second M12 connector that can be used to connect the device to a PC to easily configure the regulation parameters. A pulsed width modulated solenoid valve controls the output pressure proportionally to an analog input signal. A very high accuracy is guaranteed thanks to a high precision closed loop signal provided by a built in pressure sensor. EPP4 Comfort ranges share the same reliable mechanical parts and proportional regulation as the Basic ones giving the same characteristics for hysteresis or precision.
Markets:
• Robotics
• Paper industry
• Machine tools
• Mobile
• Buildings
• Textile
• Instrumentation
• Semi conductor
Features/Benefits:
• Long life expectancy
• Compact and light
• Low power
• Proven Parker expertise who is a pioneer in pressure regulation technology
• Atex construction available
• Customized product capability
• high pressure handling up to 20 bars
توضیحات:
Product
for air
Technology
membrane
Number of stages
single-stage
Output signal
analog output
Applications
industrial, low-pressure
Other characteristics
electro-pneumatic
Pressure
Max.: 12 bar(174.05 psi)Min.: 0.05 bar(0.73 psi)
Flow
Max.: 2,700 m³/h(95,349.6 ft³/h)Min.: 0 m³/h(0 ft³/h)
Orifice diameter
0.25 in, 0.5 in
