نام محصول:
تنظیم کننده فشار هوا

نام انگلیسی:
Air pressure regulator GH04

برند:
Conoflow

مشخصات:

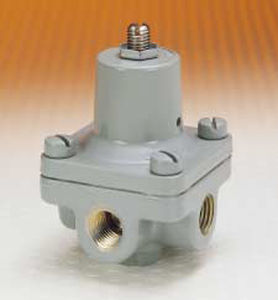

The model GH04 Cushion Loading Regulator is a compact unit designed for industrial and commercial services requiring a constant, regulated air pressure. Primarily used as a cushion loading device for Conoflow Piston Actuators, this unit’s design and high exhaust capabilities lend itself to many other application requirements. Constructed of all aluminum, this lightweight unit offers versatility in line mounting and gauge mounting with dual input and output 1/4″ NPT connections. It is available with a 0-60 PSI (0-414 kPa) regulated pressure range and Buna “N” elastomers. The controlling ball valve is Viton.

Specifications

Connections: 1/4″ NPT (Four)

توضیحات:
Product
for air

Technology
piston

Number of stages
single-stage

Applications
industrial

Other characteristics
compact

Pressure
300 psi

Flow
2 ft³/min(0.06 m³/min)
