نام محصول:
تنظیم کننده فشار هوا فشرده
نام انگلیسی:
Compressed air pressure regulator G1
برند:
Jorc Industrial
مشخصات:

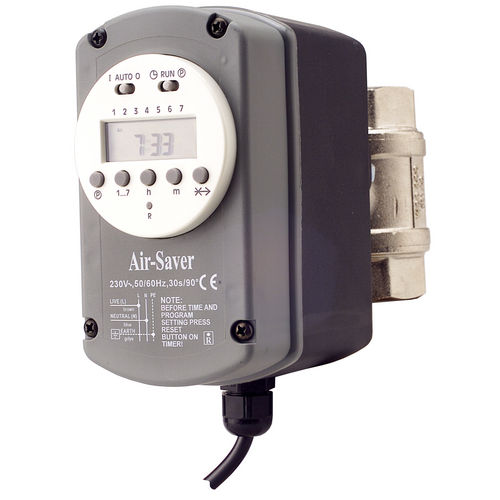

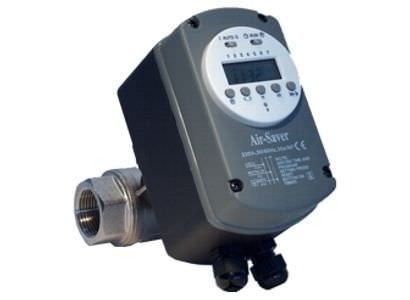

Compressed air energy saver
A typical compressed air system has air losses through pipe works connections and leaking float type drains etc. By installing an AIR-SAVER the end user will limit air losses. At the end of the working day the AIR-SAVER will close off the air flow and save the generated compressed air in the air receiver.
The AIR-SAVER is typically installed on the air outlet of the air receiver. Alternatively, it is applied in larger factories to close off certain parts of the compressed air system, where during certain parts of the day no compressed air is required.
The AIR-SAVER has proven its worth and saved millions m3 of compressed air around the world. The AIR-SAVER helps end-users save valuable compressed air from escaping unnecessarily, reducing compressor running hours and thus extending its lifetime, saving energy and operating costs.

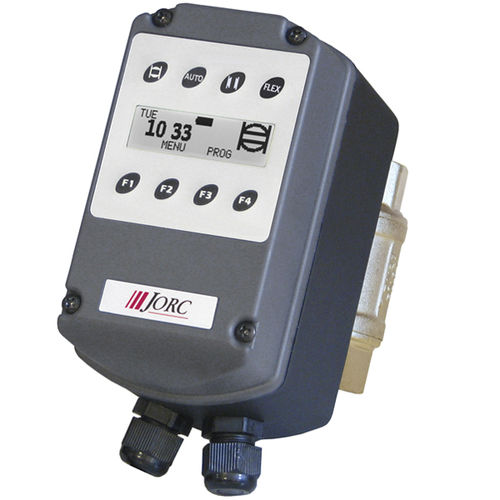

A simple – yet exciting programming module!

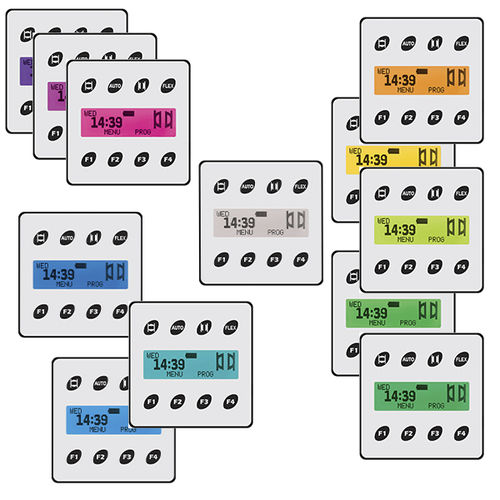

The control module offers programming simplicity and exciting display features, offering you visual information and company branding options.
FEATURES
The FLEX function allows you to adjust and set the valve’s opening and closing times, a very useful feature in overtime situations or shutdowns.

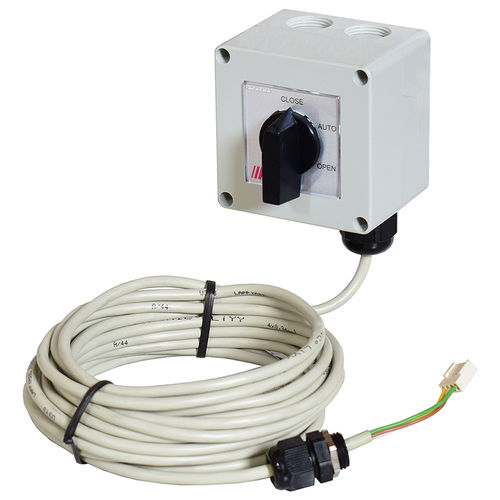

The programming module displays important information such as the actual valve position and it also shows you when the AIR-SAVER weekly program is overruled, either manually or remotely switched. When remotely switched, the weekly program is overruled. In this case the display will change color (red) and additionally shows you a warning symbol and the text “REMOTELY SWITCHED”.
توضیحات:
Product
for compressed air
Number of stages
single-stage
Material
brass, plastic
Protection level
IP54
Applications
industrial
Pressure
Max.: 16 bar(232.06 psi)Min.: 0 bar(0 psi)
Orifice diameter
1 in
Temperature
Max.: 100 °C(212 °F)Min.: 1 °C(33.8 °F)
