نام محصول:
تنظیم کننده فشار هوا فشرده
نام انگلیسی:

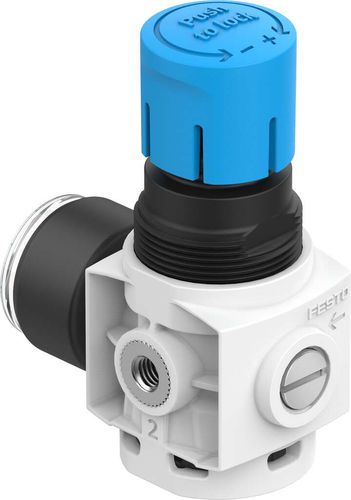

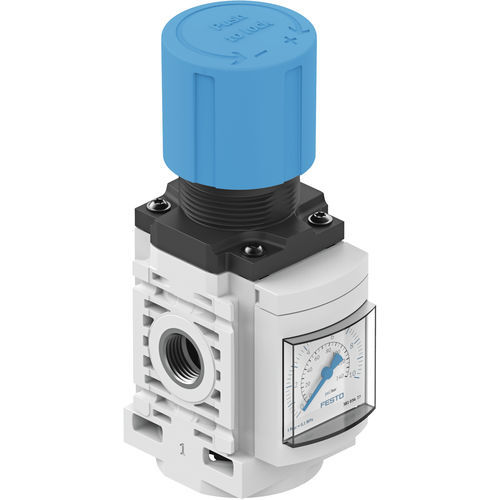

Compressed air pressure regulator MS-LR-B series
برند:
FESTO
مشخصات:
• Width dimension 25 mm
• Competitively priced basic component with a technical focus
• Lightweight and robust due to modern polymer materials
• Compatible with the MS series for the ideal combination of low-cost basic functionality and high-end function requirements
• Stabile control response
• With or without pressure gauge
• Rotary knob with latch
• With integrated secondary venting and primary venting with return flow function
• MS2: Direct operated diaphragm regulator
• MS4, MS6: directly controlled piston regulator
• Sustainable in operation due to reduction of the pressure level
توضیحات:
Product
for compressed air
Technology
diaphragm
Number of stages
single-stage
Applications
industrial
Other characteristics
rugged
Pressure
Max.: 7 bar(101.53 psi)Min.: 0.5 bar(7.25 psi)
Flow
170 l/min, 350 l/min(44.91 us gal/min, 92.46 us gal/min)
Temperature
Max.: 50 °C(122 °F)Min.: -5 °C(23 °F)
