نام محصول:
تنظیم کننده فشار هوا فشرده
نام انگلیسی:

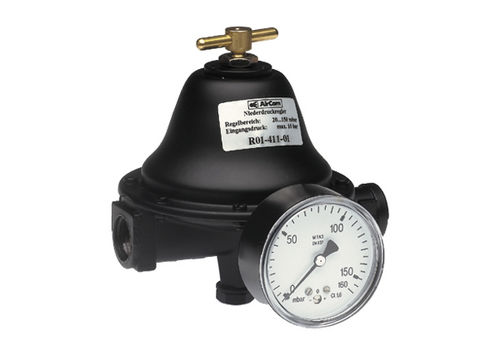

Compressed air pressure regulator R01 series
برند:
AirCom Pneumatic
مشخصات:
Your are now in the overview of an article: R01
Choose a version from the table underneath, please.
Description:
he low pressure regulator is manually adjustable.
Version R01-2/-3/-4 has an integrated safety valve which opens at
a pressure of 1.5 times of the max. outlet pressure, thus not
suitable for gas pressure regulation in closed rooms.
Media: compressed air, propane, butane or
other non-corrosive gases as well as oil
Accuracy:
at min. supply pressure and flow = < 5% FS pressure deviation
at max. supply pressure and flow = < 15% FS pressure deviation
at max. supply pressure without flow = < 25% FS pressure deviation
Air_consumption: without constant bleed
Mounting_position: any
Adjustment:
R01-5/-6: by adjusting knob,
a dial enabling eleven settings for different outlet pressure
R01-4: by T-handle with locknut
Relieving_function: non-relieving

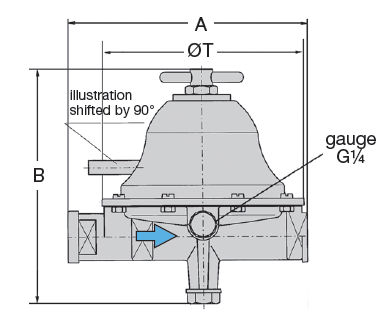

Gauge_port: G1/4 on one side of the body, except on R01-5/-6
Body: zinc die-cast
Elastomer: NBR/Buna-N
Inner_valve: brass
توضیحات:
Product
for compressed air, for gas, for air, propane
Technology

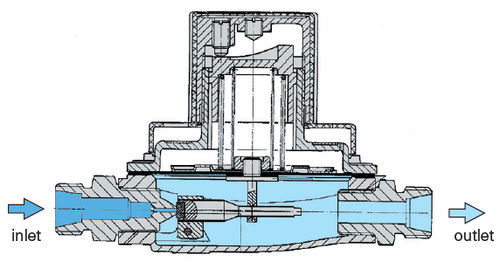

membrane, spring
Number of stages
single-stage
Material
brass, zinc, elastomer
Applications
low-pressure
Pressure
Min.: 20 mbar(0.29 psi)Max.: 1,400 mbar(20.31 psi)16 mbar, 10,000 mbar(145.04 psi, 232.06 psi)
Flow
Min.: 13 l/min(3.43 us gal/min)Max.: 140 l/min(36.98 us gal/min)
Orifice diameter
68 mm, 83 mm, 117 mm(2.677 in, 3.268 in, 4.606 in)
Temperature
Min.: -20 °C(-4 °F)Max.: 60 °C(140 °F)
