نام محصول:
تنظیم کننده فشار مینیاتوری
نام انگلیسی:

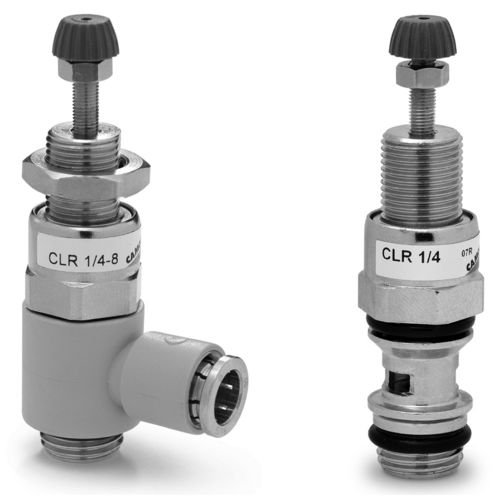

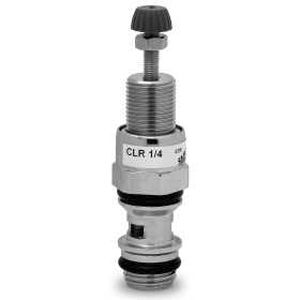

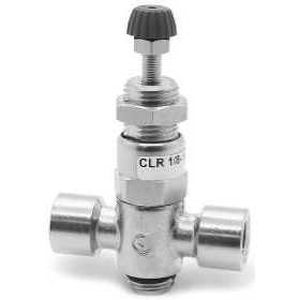

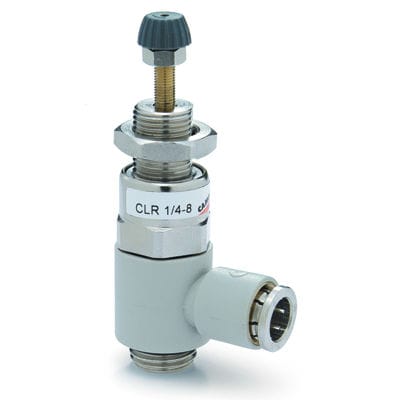

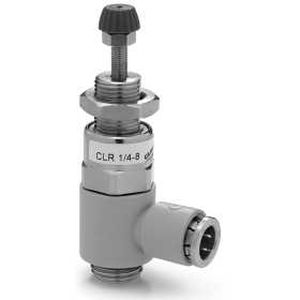

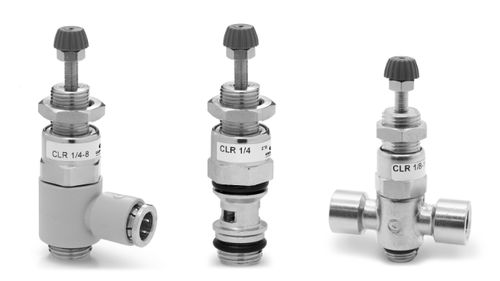

Miniature pressure regulator CLR series
برند:
CAMOZZI AUTOMATION
مشخصات:
Series CLR micro pressure regulators are available with G1/8 and G1/4 connections.
A piston with or without relieving and VS function (by-pass valve) has been
incorporated into its design. The body is in brass, while the connection fitting is in technopolymer which guarantees maximum lightness.
They can be supplied with or without banjo and can be console mounted.
With a threaded top part of the body both direct mounting to a valve outlet (1/8 and
1/4 threads) and console mounting are easily facilitated.
The pressure is precisely regulated simply by turning the polymer knob with a
locking nut available to
» Extremely lightweight
» Compact
» In-line or console mounting set the desired output.
توضیحات:
Technology
piston
Number of stages
single-stage
Material
brass
Applications
industrial
Other characteristics
compact, miniature
Pressure
Max.: 10 bar(145.04 psi)Min.: 2 bar(29.01 psi)
Orifice diameter
0.13 in, 0.25 in
