نام محصول:
تنظیم کننده فشار فشار بالا
نام انگلیسی:

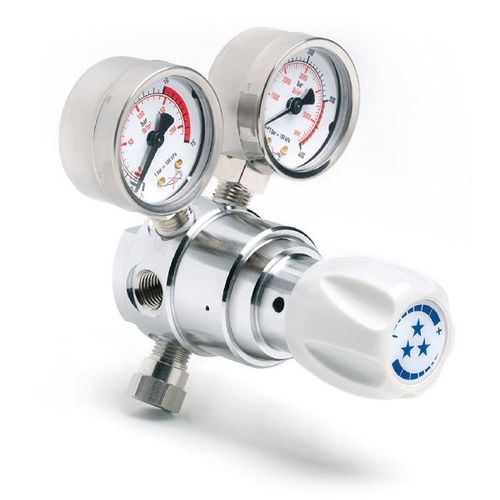

High-pressure pressure regulator SC series
برند:
Rotarex
مشخصات:
Key advantages
– This single stage regulator is based on the Cartridge seat Technology
– Compact, ergonomic and lightweight design
– Accurate pressure control for reliable service
– Handwheel in compliance with ATEX regulation and easy to clean
– Could be equipped with a shut off valve
– Relief valve seat seals material: Brass version (EPDM), Stainless Steel (FPM)
توضیحات:
Product
for oxygen, for nitrogen
Technology
diaphragm, cartridge
Number of stages
single-stage
Material
nickel-plated brass, stainless steel
Applications
industrial, high-pressure
Other characteristics
compact, with pressure gauge
Pressure
Max.: 50 bar(725.19 psi)Min.: 1.5 bar(21.76 psi)
Flow
Max.: 30 m³/h(1,059.44 ft³/h)Min.: 0.2 m³/h(7.06 ft³/h)
Orifice diameter
0.13 in
Temperature
Max.: 60 °C(140 °F)Min.: -20 °C(-4 °F)
