نام محصول:
تنظیم کننده فشار دیافراگم
نام انگلیسی:

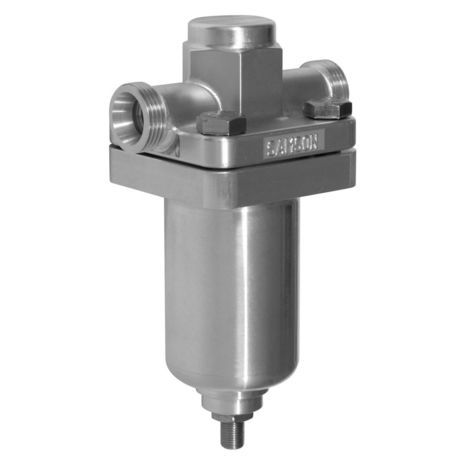

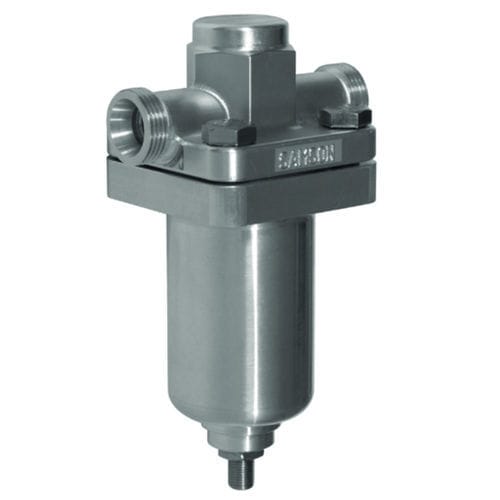

Diaphragm pressure regulator 2357-11
برند:
SAMSON
مشخصات:
USAGE
Pressure control
VERSION
DIN
FUNCTION
Pressure build-up regulator
Pressure reducing valve
APPLICATION
Valve closes when the downstream pressure rises
Valve opens when the upstream pressure drops
Special features
Pressure regulator
Consisting of valve, operating diaphragm, and set point adjuster
Free of oil and grease
EC type examination according to PED
Suitable for flammable gases (consult with SAMSON)
Accessories
Filter
Coupling nut with ball-type bushing and welding nipple
Coupling nut with ball-type bushing and flanges
Options
Version for liquid hydrogen
Version for flammable gases
Version for oxygen
Version with welding ends
توضیحات:
Technology
diaphragm
Number of stages
single-stage
Material
stainless steel
Applications
industrial
Pressure
63 bar(913.74 psi)
Flow
Max.: 1.15 m³/h(40.61 ft³/h)Min.: 0 m³/h(0 ft³/h)
Orifice diameter
0.75 in
Temperature
Max.: 200 °C(392 °F)Min.: -200 °C(-328 °F)
