نام محصول:
تنظیم کننده فشار دو مرحله ای
نام انگلیسی:

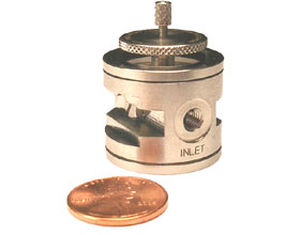

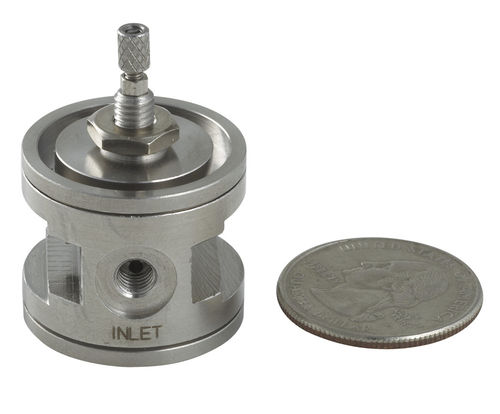

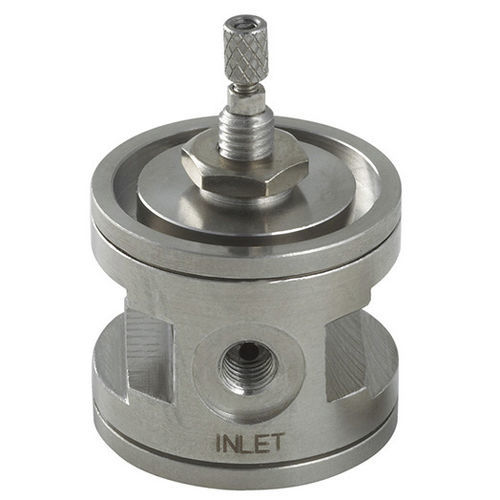

Two-stage pressure regulator PRD3-.N.-.-..
برند:
Beswick Engineering Co, Inc.
مشخصات:
The PRD3 is the next generation of our award winning PRD2 family of regulators, featuring larger 10-32 threaded inlet and outlet ports, and an improved valve design.
Max Inlet Pressure Rating: This is a two stage regulator, and is ideal for applications with fluctuating or decaying inlet pressures, up to a maximum of 500 psi.
Outlet Pressure Range: Maximum outlet range 0-30 psig. The large valve to sensing area ratio and frictionless design of Beswick’s diaphragm style regulators make them especially well suited for low pressure regulation, such as ½ psi. The two stage design allows the regulator to maintain a consistent outlet pressure despite wide swings in the inlet/source pressure.
Approximate Weight: 66g in brass and stainless steel (303 & 316), 25g in aluminum. Weight will vary slightly, depending on configuration. Selecting the 2 inch. high resolution cap option adds approximately 50-60g to total weight.

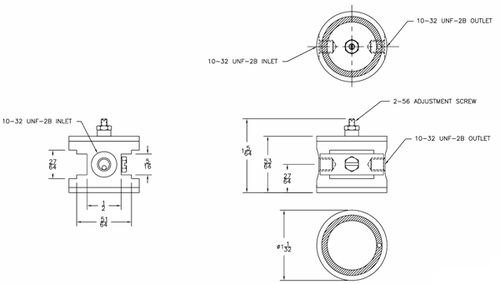

Porting: 10-32 internal threaded inlet and outlet ports.
This is a Non-Relieving regulator.
توضیحات:
Product
for compressed air, for gas, for air, for inert gases, for oxygen, for nitrogen, for hydrogen, for CO2
Technology
membrane
Number of stages
two-stage
Material
brass, stainless steel, aluminum
Applications
precision, for medical applications, for analytical instruments, pneumatic, high-purity, for chromatography, for laser
Other characteristics
compact, high-precision, ultraminiature, high-performance, non-relieving, chemical-resistant, double, corrosion-resistant
Pressure
Min.: 0 psiMax.: 30 psi
Orifice diameter
0.89 mm(0.035 in)
