نام محصول:
تنظیم کننده فشار تک مرحله ای
نام انگلیسی:

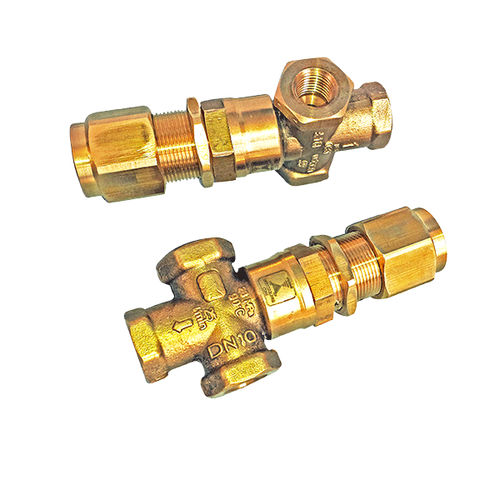

Single-stage pressure regulator MC64020
برند:
Mistcooling Inc
مشخصات:
MistCooling Inc offers you a two in one pressure regulator exclusively designed and built to facilitate and support both high pressure misting systems and wide range of high pressure based applications. This is known as a two in one regulator because it’s a pressure regulator cum pressure safety relief valve. In other words, this device not only helps control and regulates the pressure but also works as a flow proportionate valve with high and low flow.
This pressure regulator is available in 1/4 F G 1/4 F (MC-MV500-2) 3/8 F G 3/8 F (MC-SVT27-3) sizes with permissible pressure 280 Bar 28 MPa 4060 psi, Rated Pressure 250 Bar 25 MPa 3625 psi, Minimum Adjustable Pressure 25 Bar 2,5 MPa 36 psi, Rated Flow 25 I/min 6,6 USGpm Rated Temperature 90’c 194’F and Size 1/4 NPT Female Inlet X 1/4 NPT Female Outlet X 1/4 NPT Female Inlet.
It is a highly-functional pressure regulator, effective for use in a variety of applications such as high pressure misting, carpet extractor cleaner, pressure washer, chemical-pump sprayer, pressure-cleaner, washing equipments, boiler-feeding washer sprayer and several other purposes. These valves are ideal for regulating pressure in high pressure applications and to adjust working pressure between 375 to 3625psi.
It is made of forged brass which makes it 15 times stronger than any other mold cast part. It lowers metal scrap, has a pore-free surface, high strength for safety and long-term applications, is durable and its superior polished surface contributes to its cosmetic value-added benefits.
توضیحات:
Number of stages
single-stage
Applications
industrial
Pressure
250 bar(3,625.94 psi)
