نام محصول:
تنظیم کننده فشار تک مرحله ای
نام انگلیسی:

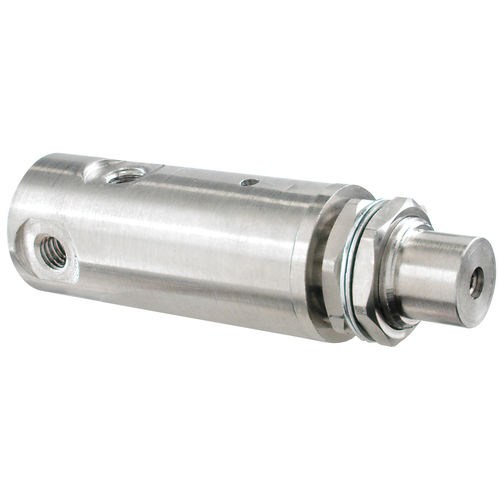

Single-stage pressure regulator PR
برند:
Beswick Engineering Co, Inc.
مشخصات:
The PR family of regulators offers relatively precise pressure regulation in a versatile, economical, miniature package. A wide selection of porting configurations and adjustment styles are available, offering design freedom.
Max Inlet Pressure Rating: This is a single stage regulator, and is ideal for applications with steady inlet pressures up to a maximum of 500 psig.
Outlet Pressure Range: Maximum outlet range 0-400 psi. Piston style regulators contain coil springs, and are especially well suited for applications requiring higher outlet pressures (minimum 10 psi).
Approximate Weight: 72g in brass and stainless steel and 33g in aluminum. Weight will vary slightly, depending on configuration.

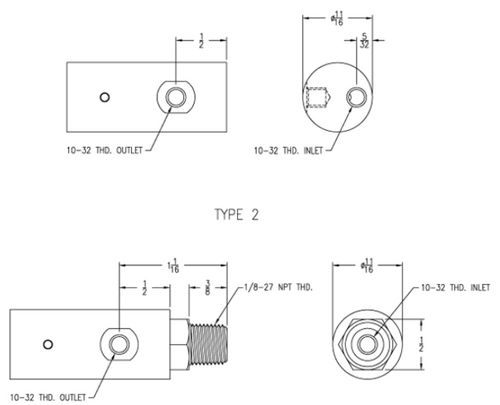

Porting: Eight different porting configurations are available. See images above for more information.
This regulator is available in both Relieving and Non-Relieving configurations.
Mounting: Most models are supplied with a 15/32-32 thread, with two 9/16″ hex nuts and 2 washers for panel mounting. Manifold ported regulators (Type 2 & Type 8) include the 15-32-32 panel mount thread but are not supplied with panel mounting hardware.
توضیحات:
Product
for compressed air, for gas
Technology
piston
Number of stages
single-stage
Material
brass, stainless steel, aluminum
Applications
industrial, for analytical instruments, pneumatic, cylinder
Other characteristics
compact, miniature, relieving, non-relieving, medium-flow, corrosion-resistant
Pressure
Min.: 0 psiMax.: 400 psi
Orifice diameter
1.27 mm(0.05 in)
