نام محصول:
تنظیم کننده فشار آب
نام انگلیسی:

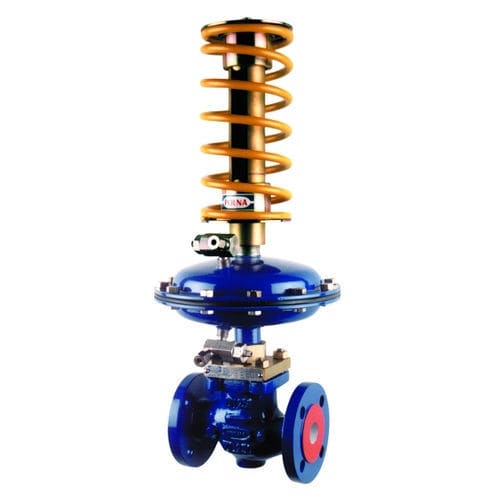

Water pressure regulator ZSN 5
برند:
Zaklady Automatyki POLNA S.A.
مشخصات:
Regulators are used to control preset pressure in process installations connected to regulator valve outlet.
They are used in district heating systems, industrial processes in water to control flow of cold and hot water, steam, air and non-combustible gases. Using with other media subject to consulting with manufacturer. We can adjust the control valve to match your individual needs.
Body – grey cast iron EN-GJL 250 ductile cast iron EN-GJS 400-18 carbon cast steel GP 240 GH acid-resistant cast steel GX5CrNiMo 19-11-2
Plug and seat – acid-resistant steel X6CrNiMoTi 17-12-2
Actuator housing – carbon steel S235JRG2C acid-resistant steel X6CrNiTi 18-10
Diaphragm – EPDM + polyester fabric
Regulators are used to control preset pressure in process installations connected to regulator valve outlet. They are used in district heating systems, industrial processes in water to control flow of cold and hot water, steam, air and non-combustible gases. Using with other media subject to consulting with manufacturer.
The regulator comprises three temporary fastened main units: valve, actuator and adjuster. Control valve, single-ported with a balanced plug. Flanged connections of valve body with valve face as per: PN-EN 1092-1:2010 and PN-EN 1092-2:1999 for PN10; 16; 25; 40 PN-EN 1759-1:2005 for CL 150; CL 300. Length of structure according to: PN-EN 60534-3-1:2000 – Series 1 – for PN10; 16; 25; 40; Series 37 – for CL150; Series 38 – for CL300. Diaphragm actuator (diaphragm effective area 80 cm2), with clammed housing, or diaphragm actuator (diaphragm effective area 160 cm2), with bolted housing.
توضیحات:
Product
for water
Technology
diaphragm, plug
Number of stages
single-stage
Material
cast iron, carbon steel, cast steel
Applications
industrial
Other characteristics
flange, direct-acting, preset
Pressure
16 bar, 25 bar, 40 bar(232.06 psi, 362.59 psi, 580.15 psi)
Flow
Min.: 1 m³/h(35.31 ft³/h)Max.: 125 m³/h(4,414.33 ft³/h)
Orifice diameter
Min.: 15 mm(0.591 in)Max.: 100 mm(3.937 in)
Temperature
Min.: 0 °C(32 °F)Max.: 200 °C(392 °F)
