نام محصول:
تنظیم کننده جریان فشار دیفرانسیل
نام انگلیسی:

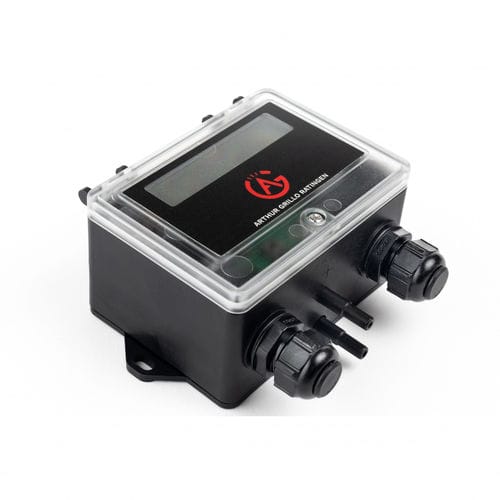

Differential pressure flow regulator DPC200R
برند:
Arthur Grillo GmbH
مشخصات:
Flow regulator with relay output – DPC200R
Electromechanical diaphragm measuring system
Alphanumeric LCD-display
Analogue output 0…10 V
Relay alarm output for measuring and control mode
Selectable measurements (differential pressure or volume flow)
Selectable units (metric or imperial)
Adjustable k-factor for volume flow calculation
Controlling mode or measuring mode selectable
Measuring mode with adjustable limit value
Control mode with adjustable:
-2 setpoints
-PI parameters for PI algorithm
-maximum output voltage
control action: positive / heat or negative / cool
GRILLO-DPC differential pressure controllers / volume flow controllers are used to measure and control low differential pressures of non-aggressive gases, especially air. A signal of 0…10V is available to the user as an analog output. Depending on the setting of the device, this signal has different meanings. If the instrument is used as a pressure sensor, the output signal is proportional to the measured pressure. As a volume flow sensor, the device provides a root-equipped output signal. In pressure or flow rate control, the output signal represents the manipulated variable of the PI control.
It is used, for example, in air conditioning technology for controlling fans, monitoring room pressure or controlling filters. In addition to the analogue output, an additional alarm output (open collector) is available for limit value monitoring or filter monitoring.
TECHNICAL SPECIFICATIONS:
Operating mode:
Measuring mode or control mode
Measuring medium:
Air or non-aggressive gases
توضیحات:
Technology
differential pressure, diaphragm
Fluid
for gas
Other characteristics
for HVAC applications, precision, industrial, compact, adjustable k-factor, adjustable PI parameters, IP54, normal or inverse control, control mode or measuring mode, direct-reading, wall-mount, with pressure indicator
Output
with relay output
Pressure
Max.: 6,000 Pa(0.9 psi)Min.: 0 Pa(0 psi)
