نام محصول:
تنظیم کننده جریان حجمی
نام انگلیسی:

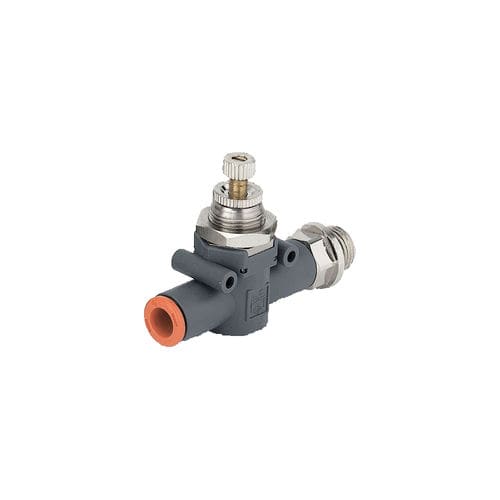

Volumetric flow regulator RFL L series
برند:
METAL WORK
مشخصات:
The RLF L flow micro-regulator belongs to the LINE ON LINE® family and can be connected in series or in parallel with all the other products.The RFL L regulates the air input and thus the speed in pneumatic actuators. Two versions are available:Type U (unidirectional) regulates the flow only in one of the two directions of air flow. The following types of fitting can be mounted:
• Push-in input and output fitting
• Push-in input fitting and threaded port on the exhaust (cylinder type)
• Input threaded port and push-in fitting on the exhaust (valve type)Type B (bidirectional) regulates the flow in both directions of air flow. The following types of fitting can be mounted:
• Push-in input and output fitting
• Threaded port and push-in fitting
EAN code: 8024986272246
Short description: RFL R pipe-pipe unidir. Ø 4
Quantity per package: 10
Minimum order quantity: 10
Unit of measure: items
Functional denomination: Unidirectional flow micro-regulator
Max temperature (°C): 60
Min temperature (°C): -20
Suggested tube (Type): Rilsan PA11-Nylon 6-Polyamide 12-Polypropylene
توضیحات:
Technology
volumetric
Fluid
pneumatic, for air
Other characteristics
miniature, manual
Flow rate
155 l/min, 450 l/min, 850 l/min(40.94667 us gal/min, 118.87742 us gal/min, 224.54624 us gal/min)
Pressure
10 bar(145 psi)
Nominal diameter
Min.: 4 mm(0.157 in)Max.: 8 mm(0.315 in)
