نام محصول:
تنظیم کننده جریان حجمی
نام انگلیسی:

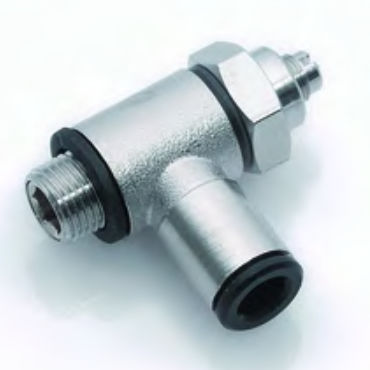

Volumetric flow regulator ipso 028
برند:
ITV
مشخصات:
– Throttle and non-return valves with various tube connection options
– Brass, aluminium and plastic throttle valves
– For various applications
Operating temerature
-10°C to +70°C
0°C to +70°C
Non-return valve, Quick exhaust valve
Valves in general
Flow regulators
– with banjo body
– made of plastic
– block shaped
Bidirectional flow regulators, pressure control
valve, pneumatic switch, slide valve
ipso 032, 033
Quick exhaust valve
VSR
Materials
Body, brass, nickel-plated (Ms58)
Body, plastics
Body, aluminium
O-Ring, NBR
Sealing, plastics
Membrane, plastics
Flow regulators with banjo bodies, straight
unidirectional connection, non-return valves,
slide valve, quick exhaust valve
Flow regulators 041, 042, 043
Unidirectional flow regulator (block shaped)
Valves in general
Valves in general
Quick exhaust valve
Threads
cyl. threads DIN EN ISO 228
con. threads DIN EN ISO 10226 (DIN 2999)
metr. threads ISO 261
Medium
Lubricated and non-lubricated compressed air
توضیحات:
Technology
volumetric
Fluid
pneumatic
Flow rate
Min.: 45 l/min(11.88774 us gal/min)Max.: 1,050 l/min(277.38065 us gal/min)
Pressure
Min.: 0 bar(0 psi)Max.: 10 bar(145 psi)
Nominal diameter
Min.: 4 mm(0.157 in)Max.: 12 mm(0.472 in)
