نام محصول:
تنظیم کننده جریان حجمی
نام انگلیسی:
Volumetric flow regulator FR04-20F
برند:
HYDRAFORCE
مشخصات:

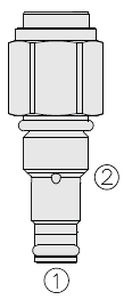

FR04-20F is a screw-in, cartridge style, fixed orifice, pressure compensated, hydraulic flow regulator valve (restrictive type).
Operation
The valve maintains a constant flow rate from port 1 to port 2 regardless of load pressure changes. Reverse flow returns through the control orifice and is non-compensated.
Features
Choice of several flow settings available.
Hardened parts for long life.
Quiet, modulated response.
Compact size.
Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties
Fluid Viscosity Range:
7.4 to 420 cSt
Maximum Operating Contamination Level:
18/16/13 per ISO 4406
Unit Weight:
0.03 kg (0.06 lb)
Internal Wetted Surface Area:
21.0 cm² (3.26 in²)
Cavity:
VC04-2
04-size-2-way Cavities
Cartridge Installation Torque:
16 to 19 N-m (12 to 14 ft-lb)
Maximum Allowable Torque:
27 N-m (20 ft-lb) Maximum allowable torque
Orientation Restriction:
None
توضیحات:
Technology
volumetric
Fluid
hydraulic
Other characteristics
compact
Flow rate
Max.: 3 l/min(0.79252 us gal/min)Min.: 0 l/min(0 us gal/min)
Pressure
240 bar, 345 bar, 896 bar(3,480.9 psi, 5,003.8 psi, 12,995.4 psi)
