نام محصول:

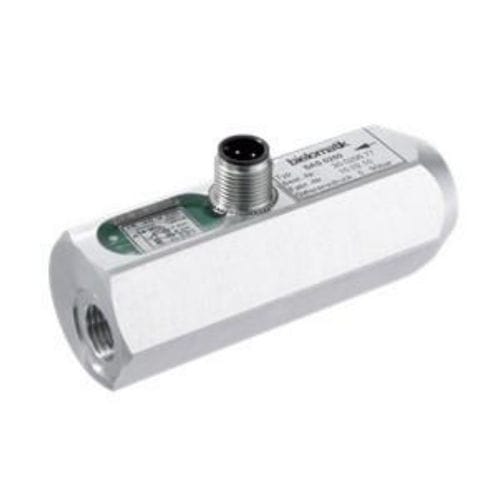

تنظیم کننده جریان حجمی
نام انگلیسی:
Volumetric flow regulator SAS
برند:
Dropsa spa
مشخصات:
The flow regulator SAS is a pressure independent and monitored volume flow regulator. It is available from 0.16 l/min to 6.3 l/min and designed for pipe fitting.
OPERATION MODE:
A measuring orifice fixed in the flow regulator determines the volume flow. A control piston ensures constant pressure difference at the measuring orifice, regardless of the pressure difference of inflow P and outflow A.
The volume flow is mostly pressure and temperature independent. The function is ensured if the pressure difference from P to A is min. 5 bar and the available volume flow is more than 10% than the relevant actual volume flow at the operating viscosity of the oil.
The integrated signal generator reports if the volume flow is lower than max. 20% of the actual volume flow.
If the green LED on the valve glows, volume flow is ok. The red LED reports no or a very low volume flow. A protective diode for the cut-off discharge of inductive loads is integrated.
Key features:
– Pipe connection: G ¼ ’’
– Temperature: 0 to 80 °C
– Protecion grade: IP 67
– Lubricant: Mineral and synthetic oils
– Viscosity: 10 to 750 mm²/s
توضیحات:
Technology
volumetric
Fluid
for oil
Other characteristics
for lubrication systems
Flow rate
Min.: 0.16 l/min(0.04227 us gal/min)Max.: 6.3 l/min(1.66428 us gal/min)
Pressure
100 bar(1,450.4 psi)
